Signal and Spectrum analyzer

Advanced/High End Test Application

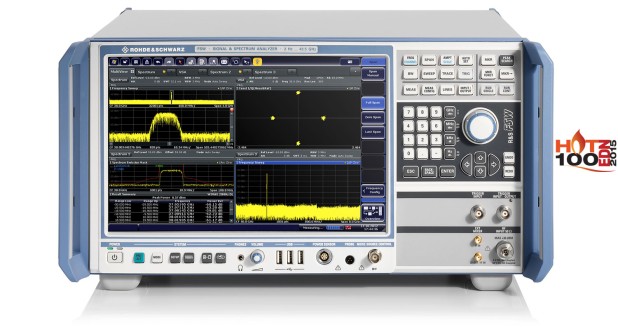

FSW SIGNAL AND SPECTRUM ANALYZER
  • Frequency range from 2 Hz to 8/13.6/26.5/43.5/50/67/85/90 GHz (with external harmonic mixers from Rohde & Schwarz up to 500 GHz)
  • Low phase noise of –137 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
  • –88 dBc dynamic range (with noise cancellation) for WCDMA ACLR measurements
  • Up to 5 GHz analysis bandwidth
  • 0.4 dB total measurement uncertainty up to 8 GHz
  • Real-time analysis up to 512 MHz bandwidth
  • High-resolution 12.1″ (31 cm) touchscreen for convenient operation
  • Multiple measurement applications can be run and displayed in parallel
Download Brochure

FSWP PHASE NOISE ANALYZER AND VCO TESTER
  • Frequency range from 1 MHz to 8/26.5/50 GHz
  • High sensitivity for phase noise measurements thanks to cross correlation and extremely low noise internal reference sources
  • typ. –172 dBc (1 Hz) at 1 GHz carrier frequency and 10 kHz offset
  • typ. –158 dBc (1 Hz) at 10 GHz carrier frequency and 10 kHz offset
  • Simultaneous measurement of amplitude noise and phase noise
  • Measurement of phase noise on pulsed sources at the push of a button
  • Internal source for measuring additive phase noise, including on pulsed signals
  • Signal and spectrum analyzer and phase noise analyzer in a single box
Download Brochure

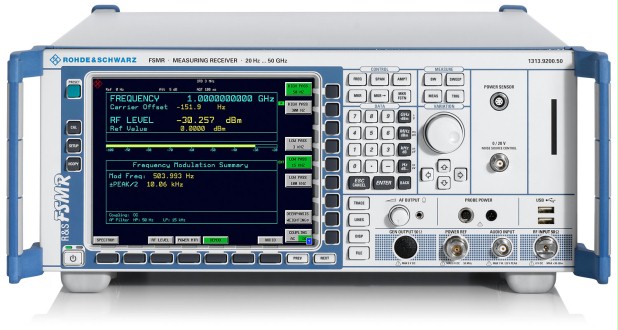

FSMR MEASURING RECEIVER
  • Frequency range from 20 Hz to 3/26.5/43/50 GHz
  • Highly accurate level calibrator with wide measurement range from +30 dBm to –140 dBm
  • Highly accurate level calibrator
  • Modulation analyzer
  • Audio analyzer with THD and SINAD measurement functionality
  • Power meter for connection of R&S®NRP-Zxx power sensors
  • High-performance spectrum analyzer
Download Brochure

General/Test Application

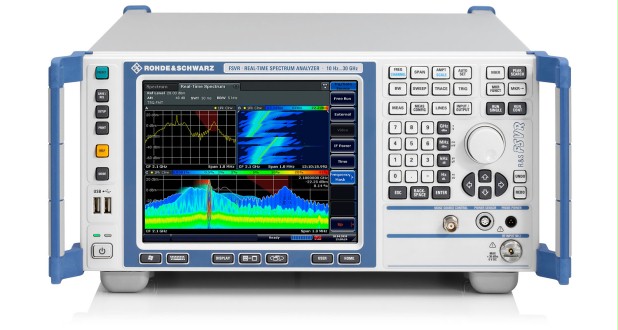

FSVR REAL-TIME SPECTRUM ANALYZER
  • Frequency range from 10 Hz to 7 GHz, 13.6 GHz, 30 GHz or 40 GHz
  • 40 MHz real-time analysis bandwidth
  • Spectrum with persistence function
  • Spectrogram display
  • Display of power versus time
  • Triggering on frequency masks
  • Measurement applications for cellular standards, wireless connectivity standards and general purpose, e.g. phase noise, noise figure, vector signal analysis, etc.
  • Frequency range up to 110 GHz with the R&S®FSVR30 or R&S®FSVR40, the R&S®FSV-B21 option and the R&S®FS-Z60/-Z75/-Z90/-Z110 harmonics mixers
Download Brochure

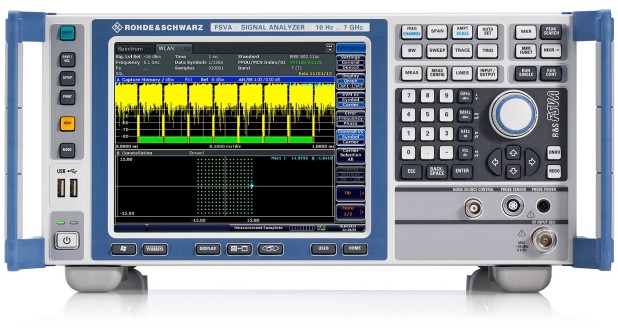

FSVA SIGNAL AND SPECTRUM ANALYZE
  • Frequency range up to 4/7/13.6/30/40 GHz
  • Up to 160 MHz signal analysis bandwidth
  • Convenient, intuitive operation with touchscreen based user interface
  • 0.4 dB level measurement uncertainty up to 7 GHz
  • Low displayed average noise level (DANL) (e.g. typ. –168 dBm (1 Hz) for the R&S®FSVA)
  • High third-order intercept (TOI) (e.g. typ. 20 dBm for the R&S®FSVA)
  • Very low phase noise (e.g. typ. –118 dBc (1 Hz) at 1 GHz and 10 kHz offset for the R&S®FSVA)
  • General-purpose measurement applications for phase noise, noise figure, vector signal analysis, analog demodulation, EMI diagnostics
  • Wireless measurement applications for LTE (including LTE-Advanced), WLAN (including IEEE 802.11ac), WCDMA/HSPA+, TD-SCDMA, GSM/EDGE, CDMA2000®/1xEV-DO, Bluetooth®
  • Frequency range up to 500 GHz with harmonics mixers
  • Keeping test data confidential with removable solid state or hard disk drives
Download Brochure

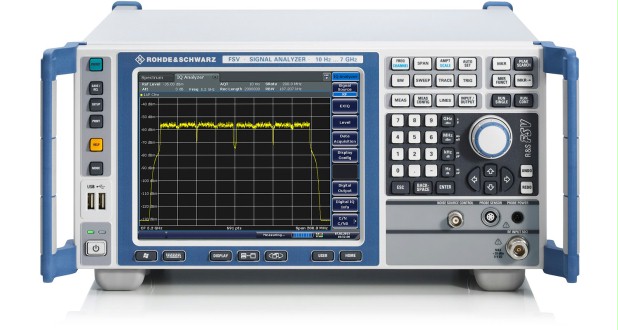

FSV SIGNAL AND SPECTRUM ANALYZER
  • Frequency range up to 4/7/13.6/30/40 GHz
  • Up to 160 MHz signal analysis bandwidth
  • Convenient, intuitive operation with touchscreen based user interface 5 GHz
  • 0.4 dB level measurement uncertainty up to 7 GHz
  • –110 dBc (1 Hz) phase noise at 10 kHz frequency offset
  • +15 dBm third-order intercept (TOI)
  • Displayed average noise level (DANL) in 1 Hz bandwidth: –155 dBm at 1 GHz, –147 dBm at 30 GHz; with R&S®FSV-B24 preamplifier: –162 dBm at 30 GHz
  • General-purpose measurement applications for phase noise, noise figure, vector signal analysis, analog demodulation, EMI diagnostics
  • Wireless measurement applications for LTE (including LTE-Advanced), WLAN (including IEEE 802.11ac), WCDMA/HSPA+, TD-SCDMA, GSM/EDGE, CDMA2000®/1xEV-DO, Bluetooth®
  • Frequency range up to 500 GHz with harmonics mixers
  • Keeping test data confidential with removable solid state or hard disk drives
Download Brochure

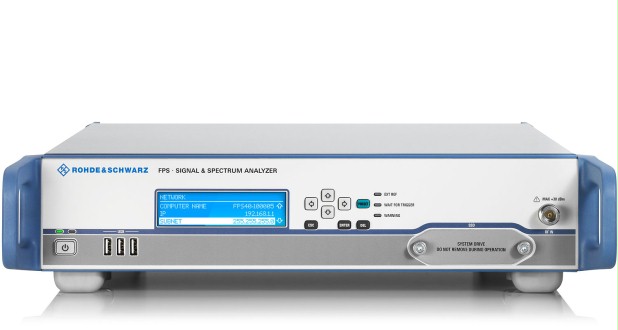

FPS SIGNAL AND SPECTRUM ANALYZER
  • Frequency range up to 4/7/13.6/30/40 GHz
  • Up to 160 MHz signal analysis bandwidth
  • 0.4 dB level measurement uncertainty up to 7 GHz
  • Measurement applications for GSM/EDGE (including EDGE Evolution), WCDMA/HSPA+, LTE, WLAN, vector signal analysis
  • –110 dBc (1 Hz) phase noise at 10 kHz frequency offset
  • +15 dBm third-order intercept (TOI)
  • –155 dBm displayed average noise level (DANL) at 1 GHz in 1 Hz bandwidth
  • Removable hard disk for applications where security is a concern
Download Brochure

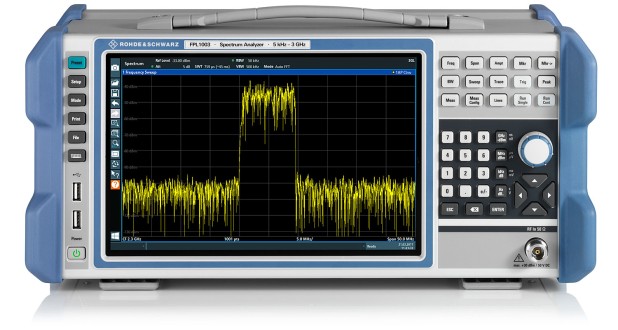

FPL1000 SPECTRUM ANALYZER
  • Frequency range 5 kHz to 3 GHz
  • SSB phase noise: –108 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
  • DANL with preamplifier: –167 dBm from 10 MHz to 2 GHz
  • Lightweight with small footprint
  • Battery or 12/24 V DC operation (option)
  • Use with power sensors (option)
  • 40 MHz analysis bandwidth (option)
  • Analog and digital signal analysis (option)
Download Brochure

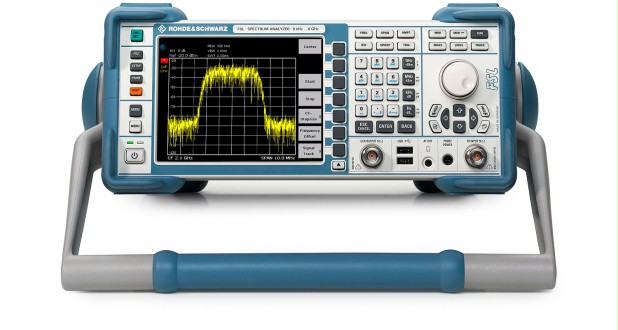

FSL SPECTRUM ANALYZER
  • Frequency range from 9 kHz to 3 GHz, 6 GHz or 18 GHz
  • Models with and without tracking generator
  • Signal analysis bandwidth of 28 MHz
  • Low measurement uncertainty, even in microwave range
  • General measurement applications, e.g. spectrogram
  • Lightweight and compact for on-site installation, maintenance and service
  • Optional battery operation
  • Easy on-site upgrading with options
Download Brochure

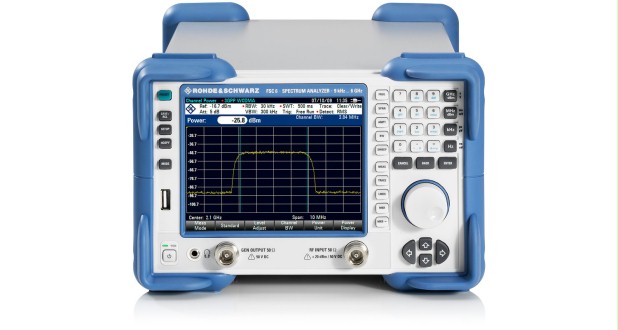

FSC SPECTRUM ANALYZER

Experience high performance wherever you take it

  • Frequency range 9 kHz to 3 GHz or 6 GHz
  • Resolution bandwidths 10 Hz to 3 MHz
  • High sensitivity (< –141 dBm (1 Hz), with optional preamplifier < –161 dBm (1 Hz ))
  • High third order intercept (> 10 dBm, typ. 15 dBm)
  • Low measurement uncertainty (< 1 dB)
  • Internal tracking generator (model .13/.16)
  • Compact dimensions
  • Low power consumption (12 W)
Download Brochure

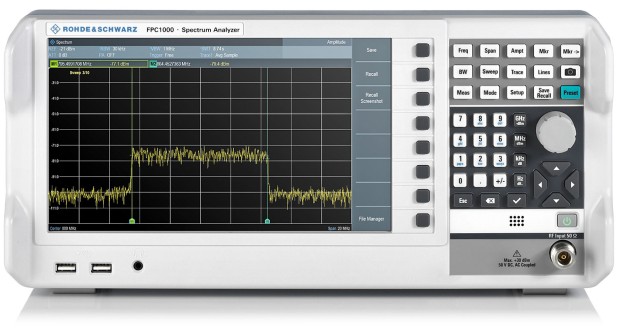

FPC1000 SPECTRUM ANALYZER
  • RF performance engineered in Germany
  • 10.1″ WXGA (1366 × 768 pixel) display
  • Frequency range from 5 kHz to 1 GHz, upgradable to 2 Ghz or 3 GHz with keycode
  • Resolution bandwidth settings down to 1 Hz
  • Wi-Fi-enabled, supported by included remote control and measurement software
  • Three-year standard warranty
Download Brochure

HandHeld Models

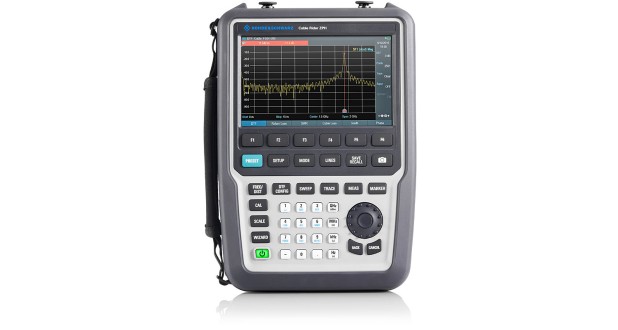

CABLE RIDER ZPH CABLE & ANTENNA ANALYZER
  • Frequency range from 2 MHz to 3 GHz/4 GHz, upgrade via keycode
  • DTF, return loss, VSWR and one-port cable loss measurements
  • Ideal for field use: 9-hour battery life, 2.5 kg (5.5 lb), backlit keypad, fast boot time, non-reflective display, small form factor, ruggedized housing (IP51)
  • Large color touchscreen
  • Measurement wizard to speed up measurements and eliminate human errors
  • Easy and cost-efficient upgrades of all options via software keycode
Download Brochure

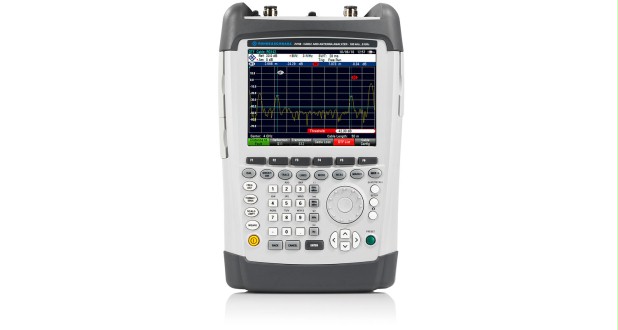

ZVH CABLE AND ANTENNA ANALYZER
  • Frequency range from 100 kHz to 3.6 GHz or 8 GHz
  • 100 dB (typ.) dynamic range for filter and antenna isolation measurements
  • Factory calibration over entire frequency range
  • uilt-in DC voltage supply (bias) for active components such as amplifiers
  • Power meter option
  • Saving of measurement results on SD memory card or USB memory stick
  • Easy operation with user-configurable test sequences (wizard)
  • Easy-to-replace Lithium-ion battery for up to 4.5 h of operation
  • Rugged, splash-proof housing for rough work in the field
  • Easy handling due to low weight (3 kg with battery) and easy-to-reach function keys
Download Brochure

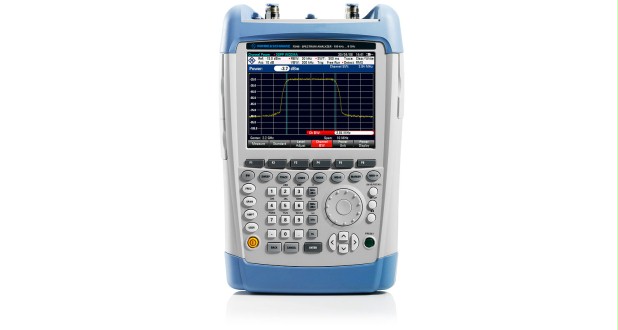

FSH HANDHELD SPECTRUM ANALYZER
  • Frequency range from 9 kHz to 3.6/8/13.6/20 GHz
  • High sensitivity (< –141 dBm (1 Hz), with preamplifier < –161 dBm (1 Hz))
  • 20 MHz demodulation bandwidth for analyzing LTE signals
  • Low measurement uncertainty (< 1 dB)
  • Measurement functions for all important measurement tasks related to the startup and maintenance of transmitter systems
  • Internal tracking generator and VSWR bridge with built-in DC voltage supply (bias)
  • Two-port network analyzer
  • Rugged, splash-proof housing for rough work in the field
  • Easy handling due to low weight (3 kg with battery) and easy-to-reach function keys
  • Easy operation thanks to user configurable, automatic test sequences (wizard)
Download Brochure

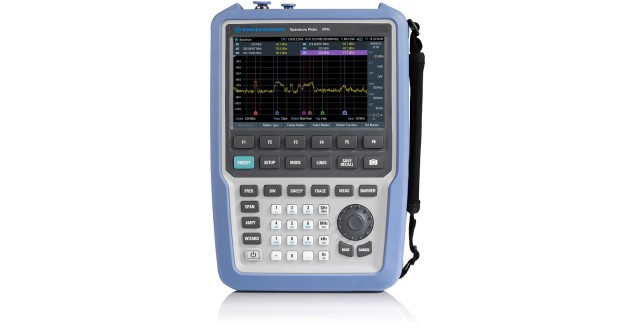

SPECTRUM RIDER FPH HANDHELD SPECTRUM ANALYZER
  • Frequency ranges from 5 kHz to 2/3/4 GHz; upgrade via keycode
  • Solid RF performance
  • Ideal for field use: 8 hour battery life, 2.5 kg (5.5 lb) weight, backlit keypad, fast boot time, nonreflective display, small footprint, ruggedized housing
  • Large color display with touch and gesture operation
  • Measurement wizard that supports measurement campaigns speeds up measurements and avoids errors
  • Features and options for various industries such as aerospace and defense, wireless communications, broadcasting, spectrum regulators and education
  • Easy and cost-efficient upgrades of all options via software keycode
  • Three-year warranty as standard (battery one year)
Download Brochure
