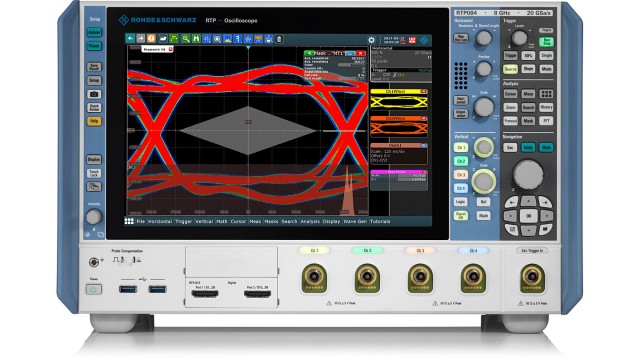

RTP OSCILLOSCOPE

Key Facts

  • Bandwidth: 4 GHz to 8 GHz
  • Max. sample rate: 20 Gsample/s
  • Max. memory depth: 2 Gsample
  • Realtime deembedding All trigger events at full bandwidth
  • Up to 16 bit resolution
Download Brochure

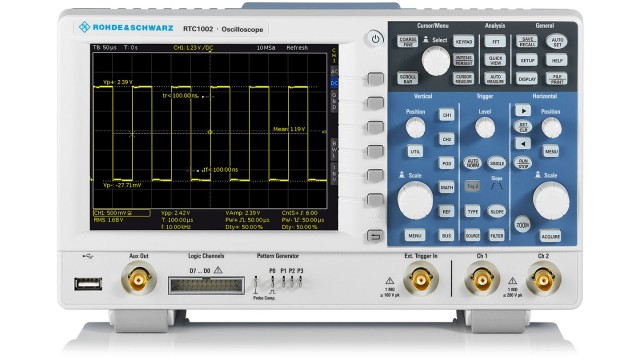

RTC1000 OSCILLOSCOPE

Key Facts

  • Bandwidth: 50 MHz to 300 MHz
  • Max. sample rate: 2 Gsample/s
  • Max. memory depth: 2 Msample
  • MSO: 8 digital channels, optional, retrofittable
  • Pattern generator: 4-bit patterns up to 50 Mbit/s
Download Brochure

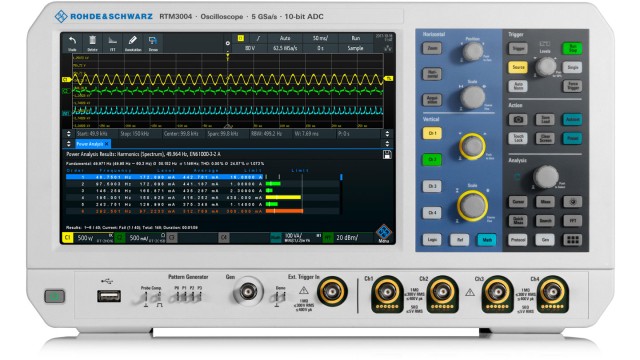

RTM3000 OSCILLOSCOPE

Key Facts

  • Bandwidth: 100 MHz to 1GHz
  • Sample rate: up to 5 Gsample/s
  • Memory depth: up to 80 Msample
  • ADC resolution: 10-bit
  • Display: 10.1’’ capacitive touchscreen
Download Brochure

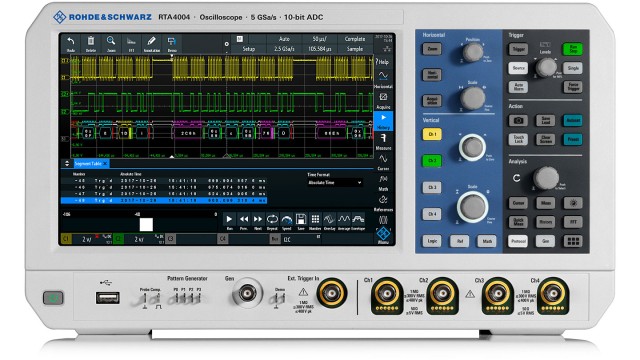

RTA4000 OSCILLOSCOPE

Key Facts

  • Bandwidth: 200 MHz to 1GHz
  • Sample rate: up to 5 Gsample/s
  • Memory depth: up to 1 Gsample
  • ADC resolution: 10-bit
  • Display: 10.1’’ capacitive touchscreen
Download Brochure

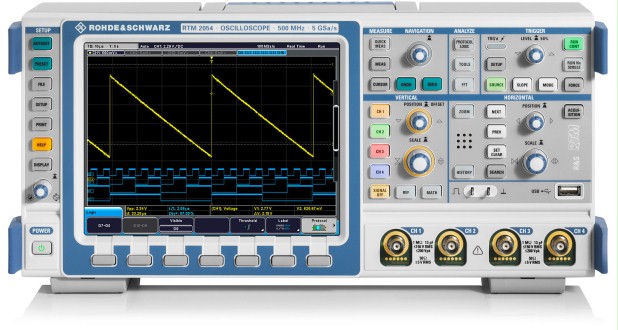

RTM2000 DIGITAL OSCILLOSCOPES

Key Facts

  • Bandwidth: 200 MHz, 350 MHz, 500 MHz, 1 GHz
  • Sample Rate: up to 5 Gsample/s
  • Memory Depth: up to 20 Msample
  • MSO option R&S®RTM-B1: 16 digital channels, 400 MHz, up to 5 Gsample/s, up to 20 Msample
  • Display: 8.4” XGA color TFT
  • QuickMeas: Key results at push of a button
Download Brochure

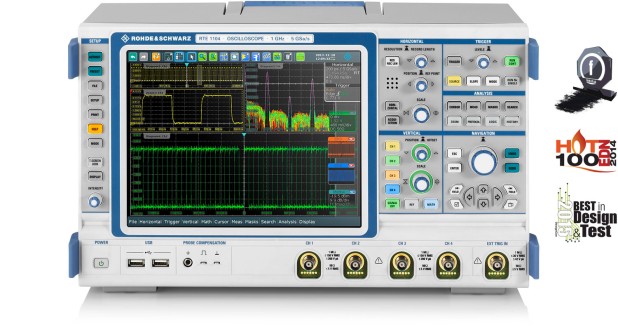

RTE1000 DIGITAL OSCILLOSCOPES

Key Facts

  • Bandwidth: 200 MHz to 2 GHz
  • Sample Rate: 5 Gsample/s
  • Memory Depth: up to 200 Msample
  • Vertical resolution: up to 16 bit
  • MSO Option R&S RTE-B1: 16 digital channels, 400 MHz, 5 Gsample/s, 100 Msample
  • Display: 10.4″ XGA touch
  • FingertipZoom: Signal details at the tip of your finger
Download Brochure

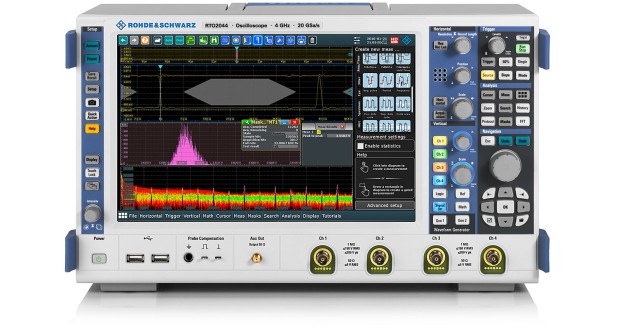

RTO2000-DIGITAL OSCILLOSCOPE

Key Facts

  • Bandwidth: 600 MHz to 6 GHz
  • Up to 16-bit vertical resolution
  • Quickly find signal faults with 1 Million waveforms/s
  • Integrated spectrum analysis
  • Industry leading 2 Gsample deep memory
  • First zone trigger in time and frequency domain
  • High-resolution capacitive touch screen with gesture support
  • Easily customizable waveform display with SmartGrid
Download Brochure

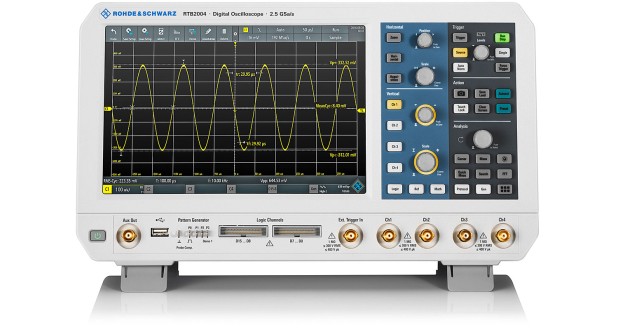

RTB2000 DIGITAL OSCILLOSCOPES

Key Facts

  • Bandwidth: 70 MHz to 300 MHz
  • Sample rate: up to 2.5 Gsample/s
  • Memory depth: up to 20 Msample
  • ADC resolution: 10 bit
  • Display: 10.1’’ capacitive touch screen
  • MSO: 16 digital channels optional, also as retrofit
  • The best choice for education
Download Brochure

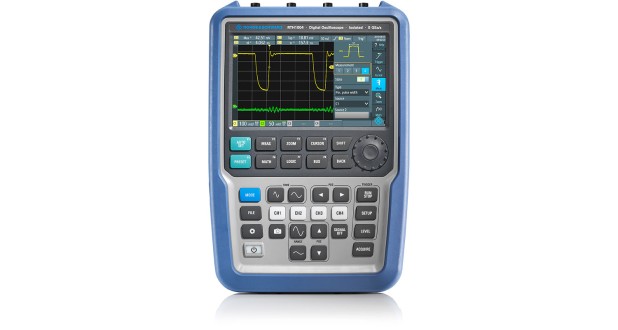

SCOPE RIDER HANDHELD DIGITAL OSCILLOSCOPES

Key Facts

  • Bandwidth: 60 MHz to 500 MHz
  • Isolated channels (CAT IV 600 V)
  • Memory Depth: 500 kSample
  • 7” capacitive touch color display
  • 8 in 1: lab oscilloscope, logic analyzer, protocol analyzer, data logger, digital multimeter, spectrum analyzer, harmonics analyzer and frequency counter
  • Wireless LAN remote control
Download Brochure
