Network Analyzer

High End Network Analyzers

ZVA VECTOR NETWORK ANALYZERS
  • Frequency range: 300 kHz to 8 GHz (R&S®ZVA8), 10 MHz to 24/40/50/67/110 GHz (R&S®ZVA24/40/50/67/110)
  • Linear and nonlinear amplifier and mixer measurements
  • Noise figure measurements
  • Pulse profile measurements with 12.5 ns resolution
  • True differential measurements for reliable characterization of active devices with balanced ports
  • High output power typ. > 18 dBm
  • Wide dynamic range typ. > 140 dB
  • High measurement speed < 3.5 μs per test point
  • Wide IF bandwidth: 1/5/30 MHz
  • Versatile calibration techniques: TOSM, TRL/LRL, TOM, TRM, TNA, UOSM
  • Automatic calibration units
  • Phase and group delay measurements on mixers with and without LO access
Download Brochure

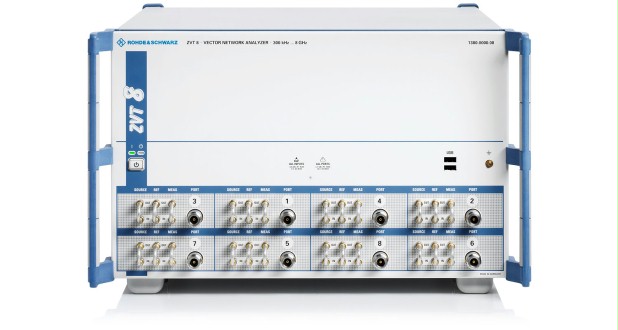

ZVT VECTOR NETWORK ANALYZERS
  • Frequency ranges from 300 kHz to 20 GHz, with two up to eight test ports
  • Multiport measurements, avoiding any time loss due to matrix control
  • Flexible configuration of test ports for balanced and single-ended measurements
  • True differential measurements and coherent signal generation
  • Enhanced performance by parallel measurements on several DUTs
  • Multichannel receiver with simultaneous sampling of channels, e.g. for phase measurements on antenna arrays
  • Automatic calibration units
  • Point-in-pulse and pulse profile measurements with up to 16 receivers
  • Up to 3 (R&S®ZVT20) or 4 (R&S®ZVT8) internal sources for flexible and efficient measurements on active devices, such as (double) converting transmitters, receivers etc
Download Brochure

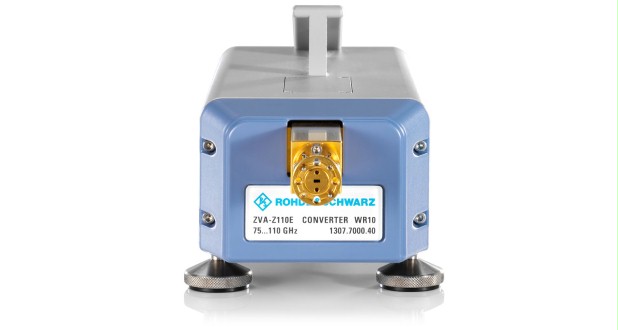

ZVA-Z MILLIMETER-WAVE CONVERTERS
  • Wide frequency range
  • 110 GHz to 170 Ghz (R&S®ZC170)
  • 140 GHz to 220 GHz (R&S®ZC220)
  • 220 GHz to 330 GHz (R&S®ZC330)
  • 325 GHz to 500 GHz (R&S ZC500)
  • For use with an R&S®ZVA24, R&S®ZVA40, R&S®ZVA50, R&S®ZVA67 or R&S®ZVT20 network analyzer
  • Wide dynamic range
  • > 90dB, typ. 105dB (R&S®ZC170)
  • > 100 dB, typ. 110 dB (R&S®ZC220)
  • > 100 dB, typ. 115 dB (R&S®ZC330)
  • > 85dB, typ. 100dB (R&S ZC500)
  • Variable output power
  • Automatic parameter setting
  • Easy handling
  • Highly stable measurements
Download Brochure

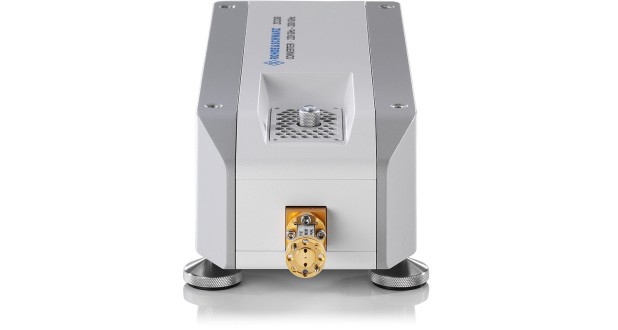

ZCXXX MILLIMETER-WAVE CONVERTERS
  • Wide frequency range
  • 110 GHz to 170 Ghz (R&S®ZC170)
  • 140 GHz to 220 GHz (R&S®ZC220)
  • 220 GHz to 330 GHz (R&S®ZC330)
  • 325 GHz to 500 GHz (R&S ZC500)
  • For use with an R&S®ZVA24, R&S®ZVA40, R&S®ZVA50, R&S®ZVA67 or R&S®ZVT20 network analyzer
  • Wide dynamic range
  • > 90dB, typ. 105dB (R&S®ZC170)
  • > 100 dB, typ. 110 dB (R&S®ZC220)
  • > 100 dB, typ. 115 dB (R&S®ZC330)
  • > 85dB, typ. 100dB (R&S ZC500)
  • Variable output power
  • Automatic parameter setting
  • Easy handling
  • Highly stable measurements
Download Brochure

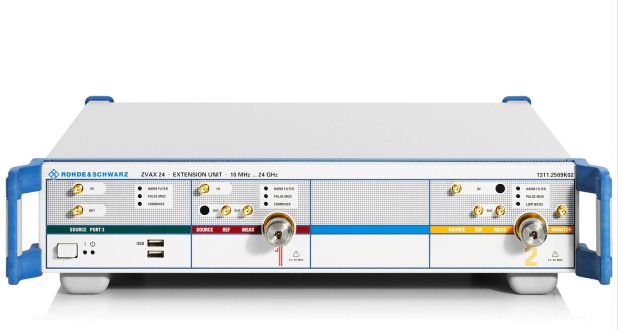

ZVAX24 EXTENSION UNIT
  • 10 MHz to 24 GHz
  • The R&S®ZVAX24 extension unit for the R&S®ZVA simplifies advanced measurements on active devices such as amplifiers.
  • Depending on the measurement tasks, it can be configured with combiners, harmonic filters, pulse modulators or high-power couplers.
  • It is directly controlled by the R&S®ZVA via a graphical user interface.
  • The combination of an R&S®ZVA and the R&S®ZVAX24 behaves like a fully integrated single box.
  • However, if multiple R&S®ZVAs are being used in a lab, they can share the extension unit.
  • This leads to an optimum utilization of investment
Download Brochure

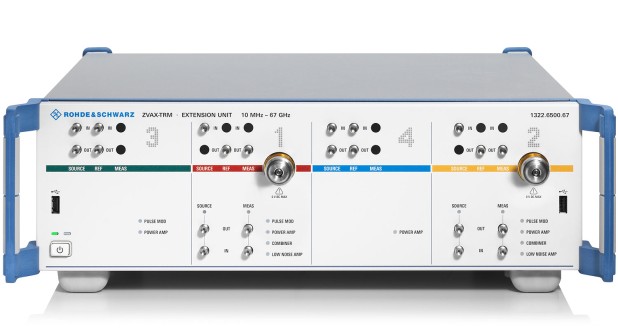

ZVAX-TRM EXTENSION UNIT
  • Extension unit for an R&S®ZVA/ZVT network analyzer for measurements on T/R modules, receivers, transceivers and power amplifiers
  • Base unit supports power levels up to +43 dBm
  • Options for pulse modulation, amplification, high-power, noise figure and inter modulation measurements
  • R&S®ZVAX TRM models up to 24/40/50/67 GHz
  • Flexible configuration for the required application
  • Straightforward dialogs for measurement configuration
  • Automatic detection and control of R&S®ZVAX TRM via USB interface
Download Brochure

Midrange Network Analyzers

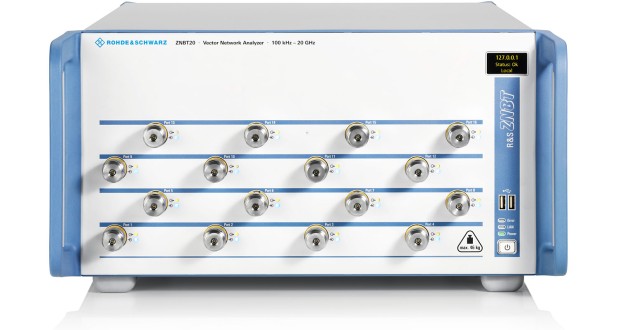

ZNBT VECTOR NETWORK ANALYZER
  • Four-port R&S®ZNBT8 base unit (upgradeable to 8, 12, 16, 20 or 24 ports)
  • Eight-port R&S®ZNBT20 base unit (upgradeable to 12, 16, 20 or 24 ports)
  • Frequency range from 9 kHz to 8.5 GHz (R&S®ZNBT8) or from 100 kHz to 20 GHz (R&S®ZNBT20)
  • Up to 24 fully phase coherent receivers
  • Wide dynamic range of up to 140 dB
  • Short sweep times, e.g. 2.1 ms (R&S®ZNBT8) and 2.5 ms (R&S®ZNBT20) for a sweep across 201 points
  • Wide power sweep range of 100 dB
  • High power handling capacity
  • IF bandwidths from 1 Hz to 10 MHz
  • High temperature stability of 0.01 dB/°K
  • More than 100 traces and channels
  • Simple configuration of multiport measurements
  • Manual and automatic calibration methods optimized for multiport applications
  • Status information
  • Compatible with all vector network analyzers from the R&S®ZVA/R&S®ZVT and R&S®ZNx families
Download Brochure

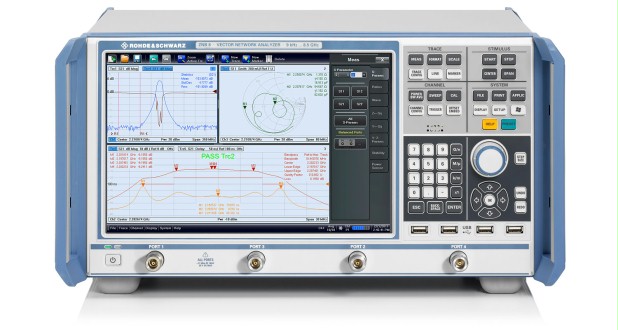

ZNB VECTOR NETWORK ANALYZER
  • Frequency range from 9 kHz up to 40 GHz
  • Wide dynamic range of up to 140 dB
  • Short sweep times, e.g. 4 ms for 401 points
  • High temperature stability of typ. 0.01 dB/°C
  • Wide power sweep range of 98 dB
  • Wide range of IF bandwidths from 1 Hz to 10 MHz
  • Manual and automatic calibration
  • Large, high-resolution 12.1″ screen
  • Touchscreen user interface
  • Two or four ports
  • Four-port model with two independant generators
  • Expansion to up to 48 ports using switch matrices
Download Brochure

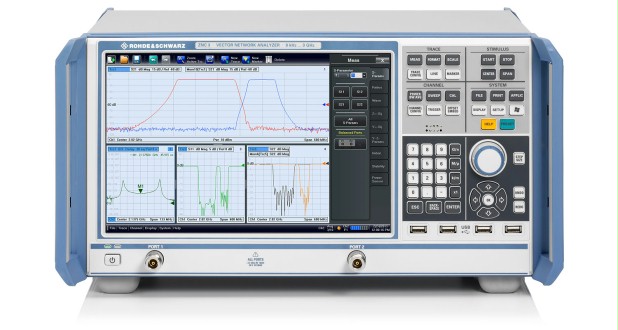

ZNC VECTOR NETWORK ANALYZER
  • Frequency range from 9 kHz to 3 GHz
  • Dynamic range of up to 130 dB
  • Short sweep times of 11 ms for 401 points
  • High temperature stability of typ. 0.01 dB/°C
  • Wide power sweep range from –50 dBm to +13 dBm (typ.)
  • IF bandwidths from 1 Hz to 300 kHz
  • Manual and automatic calibration
  • Low trace noise of 0.004 dB RMS at 10 kHz IF bandwidth
  • Large, high-resolution 12.1″ screen
  • Touchscreen user interface
Download Brochure

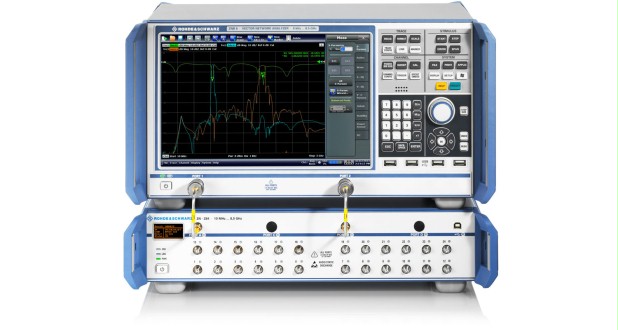

SWITCH MATRIX
  • Full crossbar measurements up to 48 ports
  • Easy setup with the R&S®ZNB
  • Ready to use, no need to configure matrix hardware externally
  • Supports use of automated calibration units
  • Damage level: + 23 dBm,
  • Remote control : LAN, USB, Direct Connect (only R&S®ZN-Z84 and R&S®ZN-Z85)
Download Brochure

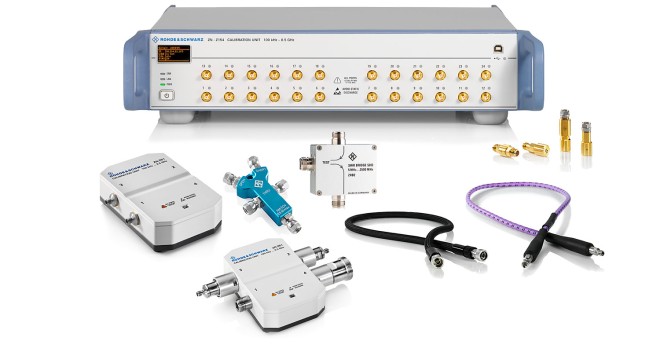

NETWORK ANALYZER ACCESSORIES
  • Configuration of tests with vector network analyzers in production systems
  • One software package to manage and control multiple test setups
  • Optimization of production system speed
  • Integration of external components (power supplies, multimeters, etc.) in test sequences by using plug-ins
  • Control of DUT, e.g. via RFFE GPIO interface
  • Efficient system error correction on test system
  • Test setups centered around the DUT
Download Brochure

Economy and Handheld Network Analyzer

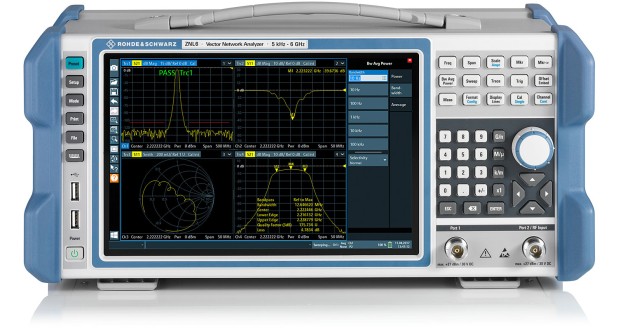

ZNL VECTOR
  • Frequency range from 5 kHz to 3 GHz (R&S®ZNL3) or 5 kHz to 6 GHz (R&S®ZNL6)
  • Two-port vector network analyzer for bidirectional measurements
  • Universal instrument concept
  • Vector network analyzer
  • Fully integrated spectrum analyzer option (for R&S®ZNL3)
  • Display of power meter measurements
  • Wide dynamic range of typ. 130 dB
  • Output power range from –40 dBm to typ. + 3 dBm
  • Measurement bandwidths from 1 Hz to 500 kHz
  • Fast measurements, i.e. 16.7 ms for 401 points (100 kHz IFBW, 200 MHz Span, 2-port TOSM (SOLT))
  • Compact size and low weight (6 kg to 8 kg)
  • Optional battery pack available
  • Windows 10® operating system
Download Brochure

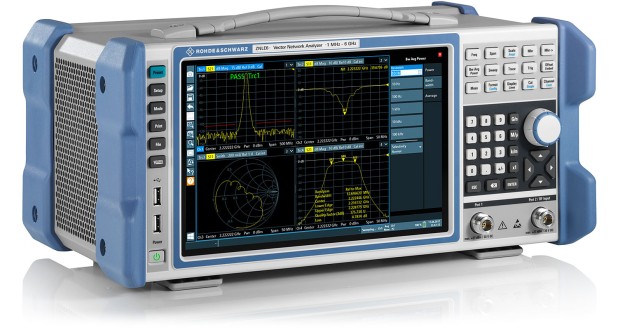

ZNLE VECTOR
  • Frequency range from 1 MHz to 3 GHz or 1 MHz to 6 GHz
  • Two-port vector network analyzer with a full S-parameter test set for bidirectional measurements on passive components
  • Wide dynamic range of up to 120 dB (typ.)
  • Measurement bandwidths from 1 Hz to 500 kHz
  • Fast measurements, i.e. 8.7 ms for 401 points (100 kHz IFBW, 200 MHz span, corr. off)
  • Compact size (depth 24 cm) and low weight (6 kg)
  • Standalone instrument with 10.1″ WXGA touchscreen
  • Windows 10 operating system
Download Brochure

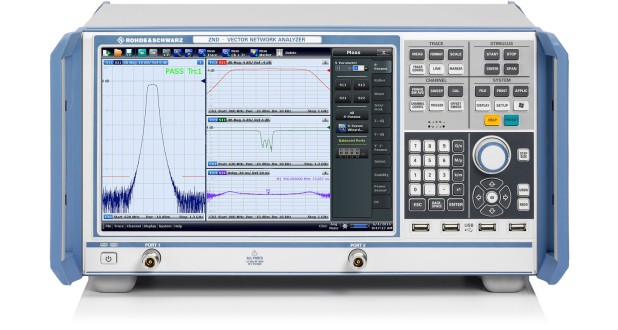

ZND VECTOR
  • Two-port network analyzer for unidirectional measurements from 100 kHz to 4.5 GHz
  • Frequency range can be extended to 8.5 GHz
  • Test set can be enhanced for bidirectional measurements
  • Touchscreen operation
  • Dynamic range up to 120 dB
  • Power sweep range up to 48 dB
  • Bandwidths from 1 Hz to 300 kHz
  • More than 100 traces and channels
  • Compatible with all Rohde & Schwarz network analyzers
  • Fast measurements, i.e. 16.7 ms for 401 points (100 kHz IFBW, 200 MHz Span, 2-port TOSM (SOLT))
  • Compact size and low weight (6 kg to 8 kg)
Download Brochure

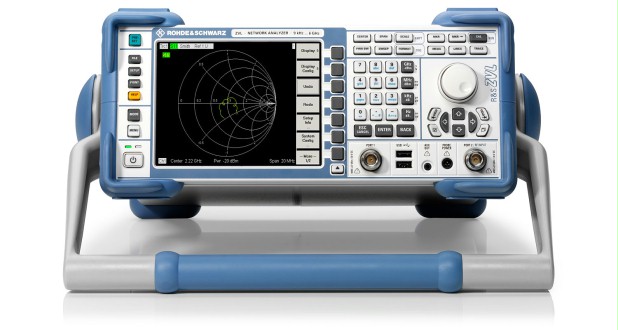

ZVL VECTOR
  • Frequency range: 9 kHz to 3 GHz/6 GHz/13.6 GHz. 75 Ω version: 9 kHz to 3 GHz. Portable network analyzers with optional spectrum analyzer in one unit
  • Optional spectrum analysis and digital communications standards
  • Bidirectional test set for displaying all four S-parameters
  • R&S®ZVL3-75: 75 Ω vector network analyzer for TV and CATV measurements
  • Multitrace display for displaying all relevant parameters
  • Distance-to-fault measurement for detecting cable faults
  • Time domain analysis
  • USB connector for R&S®NRP-Z power sensor series for precise power measurements
  • Internal battery and 12 V DC operation
  • Small, compact, lightweight and portable
Download Brochure

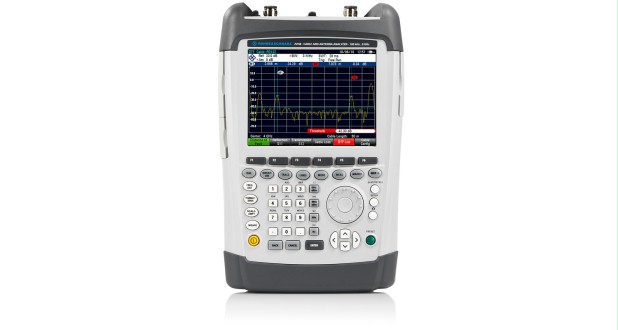

ZVH CABLE AND ANTENNA ANALYZER
  • Frequency range from 100 kHz to 3.6 GHz or 8 GHz
  • 100 dB (typ.) dynamic range for filter and antenna isolation measurements
  • Factory calibration over entire frequency range
  • Built-in DC voltage supply (bias) for active components such as amplifiers
  • Power meter option
  • Saving of measurement results on SD memory card or USB memory stick
  • Easy operation with user-configurable test sequences (wizard)
  • Easy-to-replace Lithium-ion battery for up to 4.5 h of operation
  • Rugged, splash-proof housing for rough work in the field
  • Easy handling due to low weight (3 kg with battery) and easy-to-reach function keys
Download Brochure

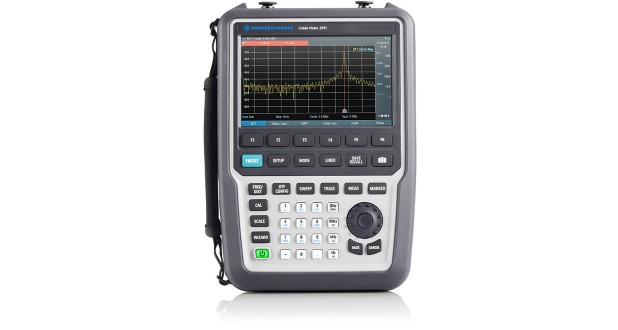

CABLE RIDER ZPH CABLE & ANTENNA ANALYZER
  • Frequency range from 2 MHz to 3 GHz/4 GHz, upgrade via keycode
  • DTF, return loss, VSWR and one-port cable loss measurements
  • Ideal for field use: 9-hour battery life, 2.5 kg (5.5 lb), backlit keypad, fast boot time, non-reflective display, small form factor, ruggedized housing (IP51)
  • Large color touchscreen
  • Measurement wizard to speed up measurements and eliminate human errors
  • Easy and cost-efficient upgrades of all options via software keycode
Download Brochure
