MICROWAVE SIGNAL SOURCE Trainer Set (S Band : 2-3 GHz)
The Package consists of a components Kit and a detailed Instructions Book.
The Following micro strips components are supplied
- Ring Resonator
- Power Divider – 2 way equal power division & 2 way unequal power division
- Branch line directional coupler
- Backward wave directional coupler
- Rat Race Hybrid Ring
- Low Pass filter & Hi Pass Filter
- Band Pass filter & Band stop filter
- Circulator
- Amplifier
- 50 Ohm Transmission Line
- Strip line Directional Coupler
The following accessories required for the characterization of components using either a Test set-up consisting of Microwave Signal Source, detector, power meter or a Network Analyzer Systems can also be Supplied.
- Signal Source – 1.9-3.300 GHz
- RF Power Meter range 100MHz – 8.0 Ghz &
- VSWR Meter
- Microwave Detector (0.1-4Ghz)
- RF Cable 30 cm length, 45 cm length & 1 meter length
- BNC Cable – premium
- Adapter SMA (F) to SMA (F)
- Attenuator pad 3db, 6db & 10 db
- Coaxial matched loads – 50 Ohms
MICROWAVE SOURCE ( S BAND )
| 1. Frequency |
|
| Range |
1.9 GHz to 3.3 GHz (minimum) |
| Accuracy |
+/- 2MHZ (at standard room temp) |
| 2. Power Output |
|
| RF Power output |
10mw (min) over 1.9 to 3.3 GHz |
| RF level Control |
25 db min, adjustable |
| 3. Operating modes |
|
| CW mode |
Power output level controllable. |
| Internal AM |
Square wave modulation (near 100% modulation index), Modulation frequency controllable from 150Hz to 1250KHz. |
|
1 KHz modulation frequency present available for measurements using VSWR meter. |
| 4. General |
|
| Operating temperature |
0ᶛ to 45ᶛC |
| Humidity |
0 to 90% (no condensation) |
| Weight |
Less than 2.0 Kg |
| Dimension (W x H x D) |
18.2 x 10 x 30 cm |
| Power Requirements |
AC input 230 V AC ± 10 V max, 20 watts (max) |
| Signal Connectors |
RF output – SMA (F) |
|
Power – 3 Pin Socket |
MICROWAVE SOURCE ( L BAND )
| 1. Frequency |
|
| Range |
700MHz to 1.7 GHz |
| Accuracy |
+/- 50MHZ (at standard room temp) |
| 2. Power Output |
|
| RF Power output |
10mw (min) over 1.9 to 3.3 GHz |
| RF level Control |
25 db min, adjustable |
| 3. Operating modes |
|
| CW mode |
Power output level controllable. |
| Internal AM |
Square wave modulation (near 100% modulation index), Modulation frequency controllable from 150Hz to 1250KHz. |
|
1 KHz modulation frequency present available for measurements using VSWR meter. |
| 4. General |
|
| Operating temperature |
0ᶛ to 45ᶛC |
| Humidity |
0 to 90% (no condensation) |
| Weight |
Less than 2.0 Kg |
| Dimension (W x H x D) |
18.2 x 10 x 30 cm |
| Power Requirements |
AC input 230 V AC ± 10 V max, 20 watts (max) |
| Signal Connectors |
RF output – SMA (F) |
|
Power – 3 Pin Socket |
MICROWAVE SOURCE ( C BAND )
| 1. Frequency |
|
| Range |
4 GHz to 6GHz (minimum) |
| Accuracy |
+/- 50MHZ (at standard room temp) |
| 2. Power Output |
|
| RF Power output |
10mw (min) over 1.9 to 3.3 GHz |
| RF level Control |
25 db min, adjustable |
| 3. Operating modes |
|
| CW mode |
Power output level controllable. |
| Internal AM |
Square wave modulation (near 100% modulation index), Modulation frequency controllable from 150Hz to 1250KHz. |
|
1 KHz modulation frequency present available for measurements using VSWR meter. |
| 4. General |
|
| Operating temperature |
0ᶛ to 45ᶛC |
| Humidity |
0 to 90% (no condensation) |
| Weight |
Less than 2.0 Kg |
| Dimension (W x H x D) |
18.2 x 10 x 30 cm |
| Power Requirements |
AC input 230 V AC ± 10 V max, 20 watts (max) |
| Signal Connectors |
RF output – SMA (F) |
|
Power – 3 Pin Socket |

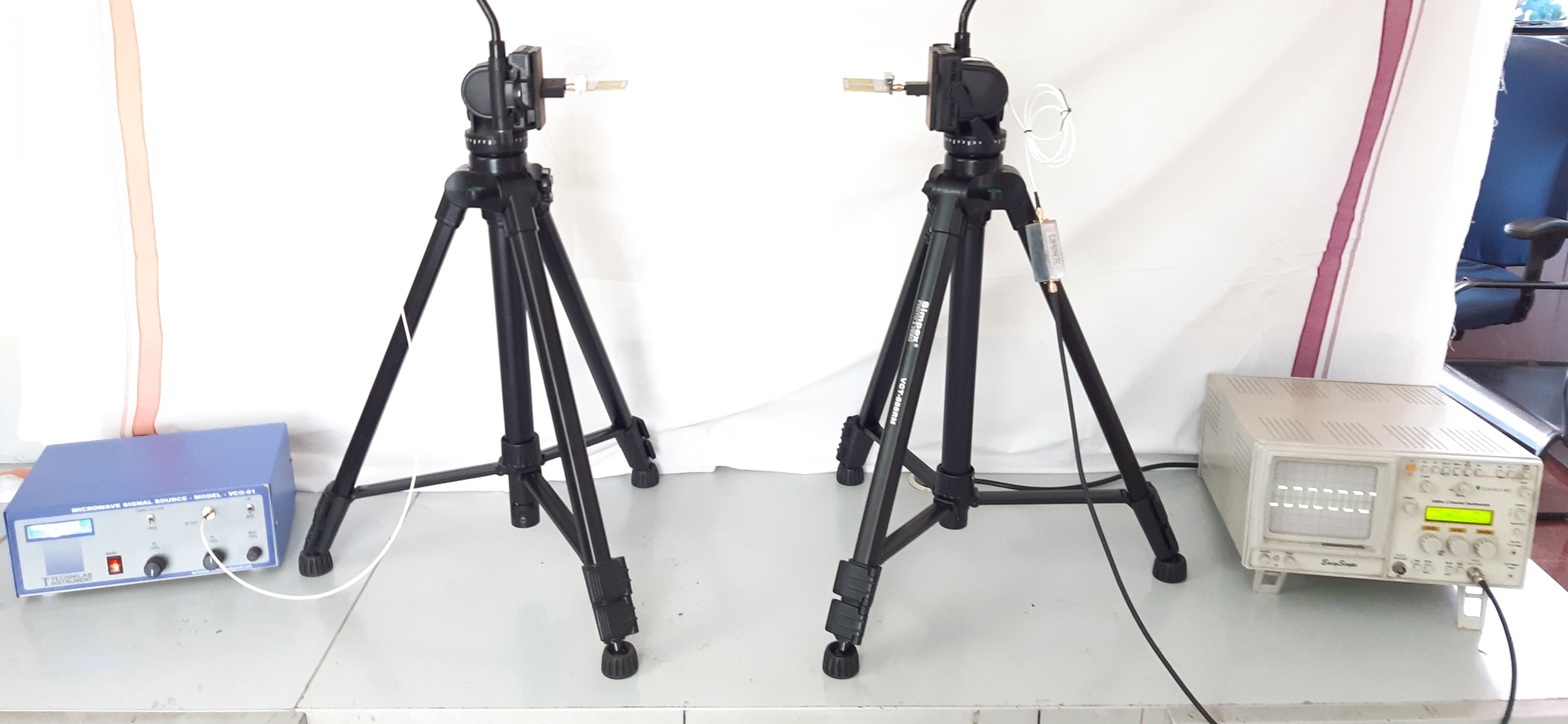

Micro strip Antenna Trainer Kit-TLMS-01 Micro Strip Antenna Trainer Kit for Study of Radiation Pattern, Gain, Directivity etc of different types of Antenna.
| Sl.No |

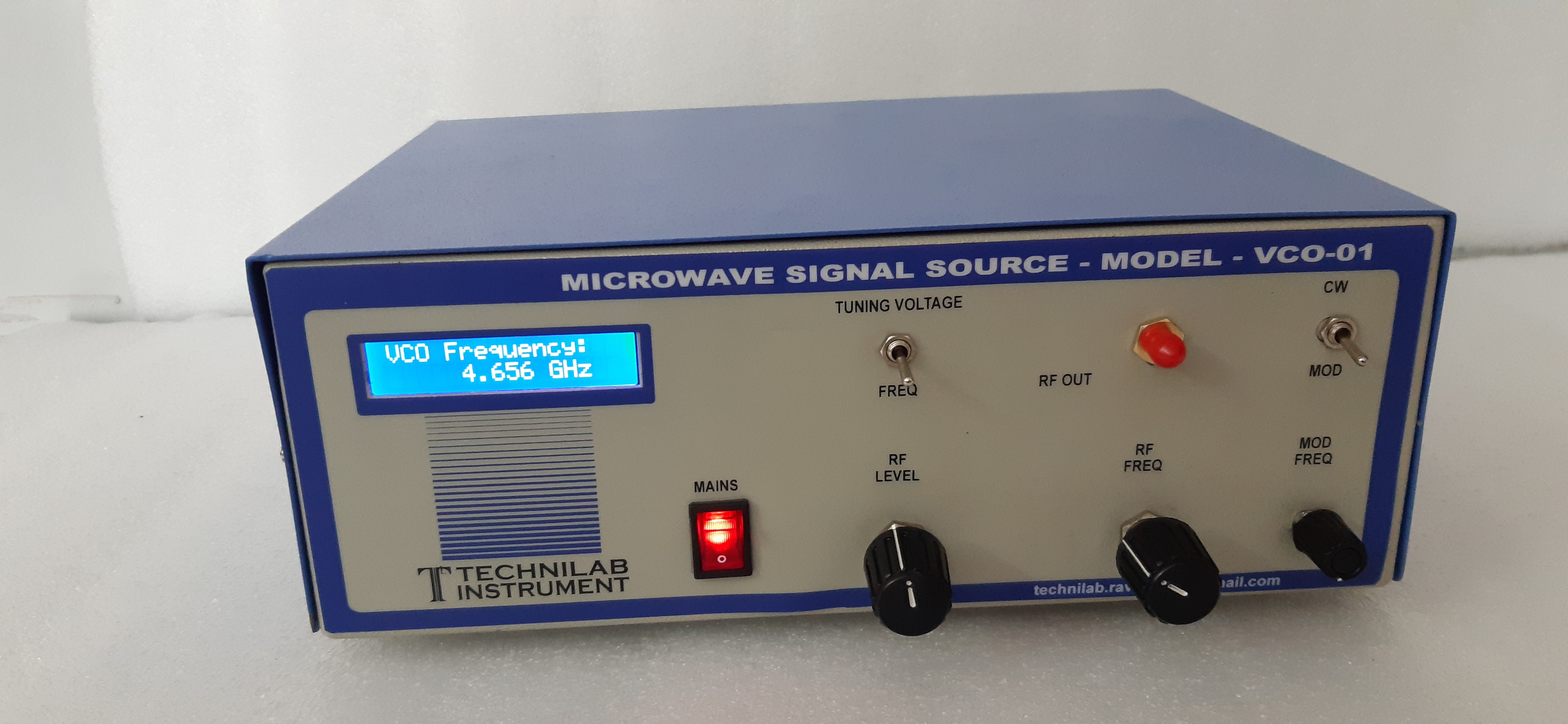

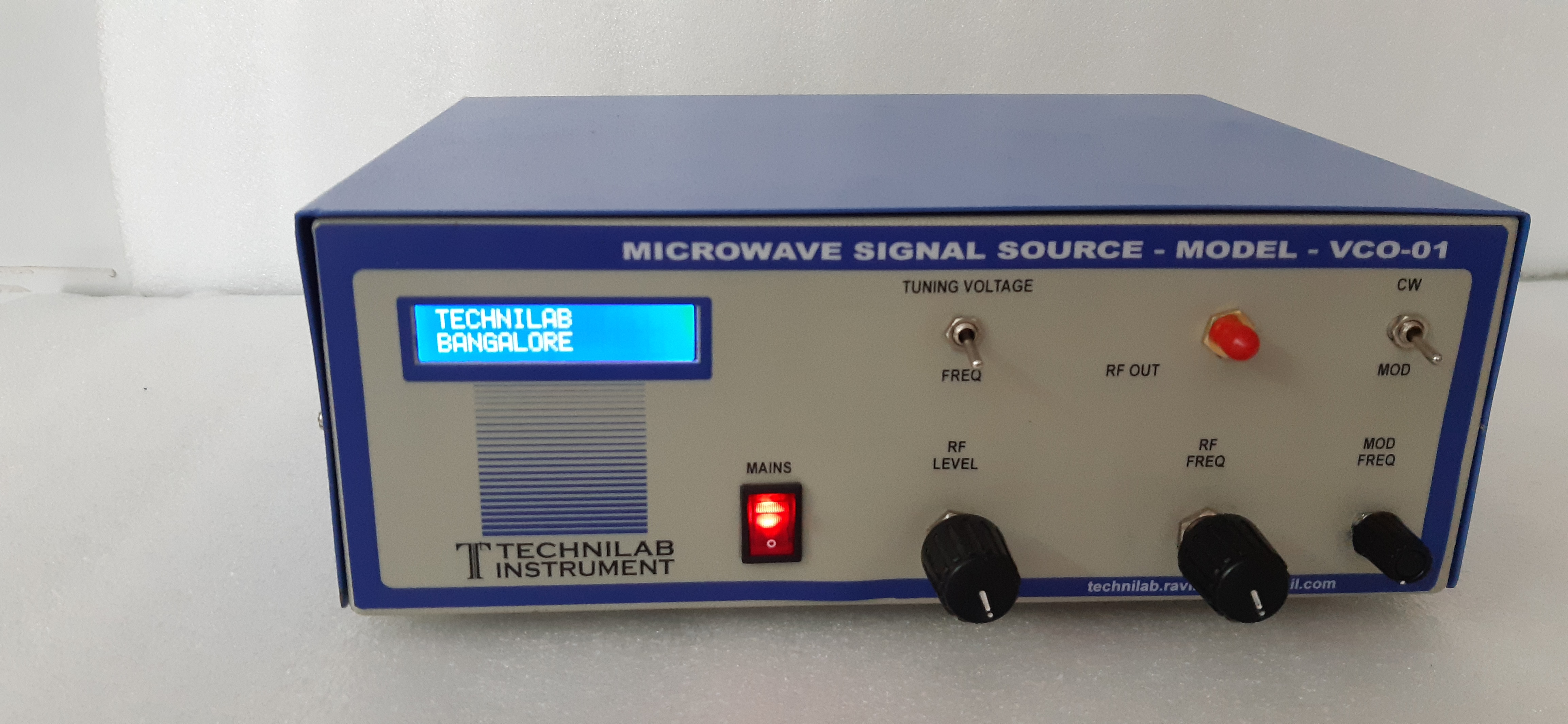

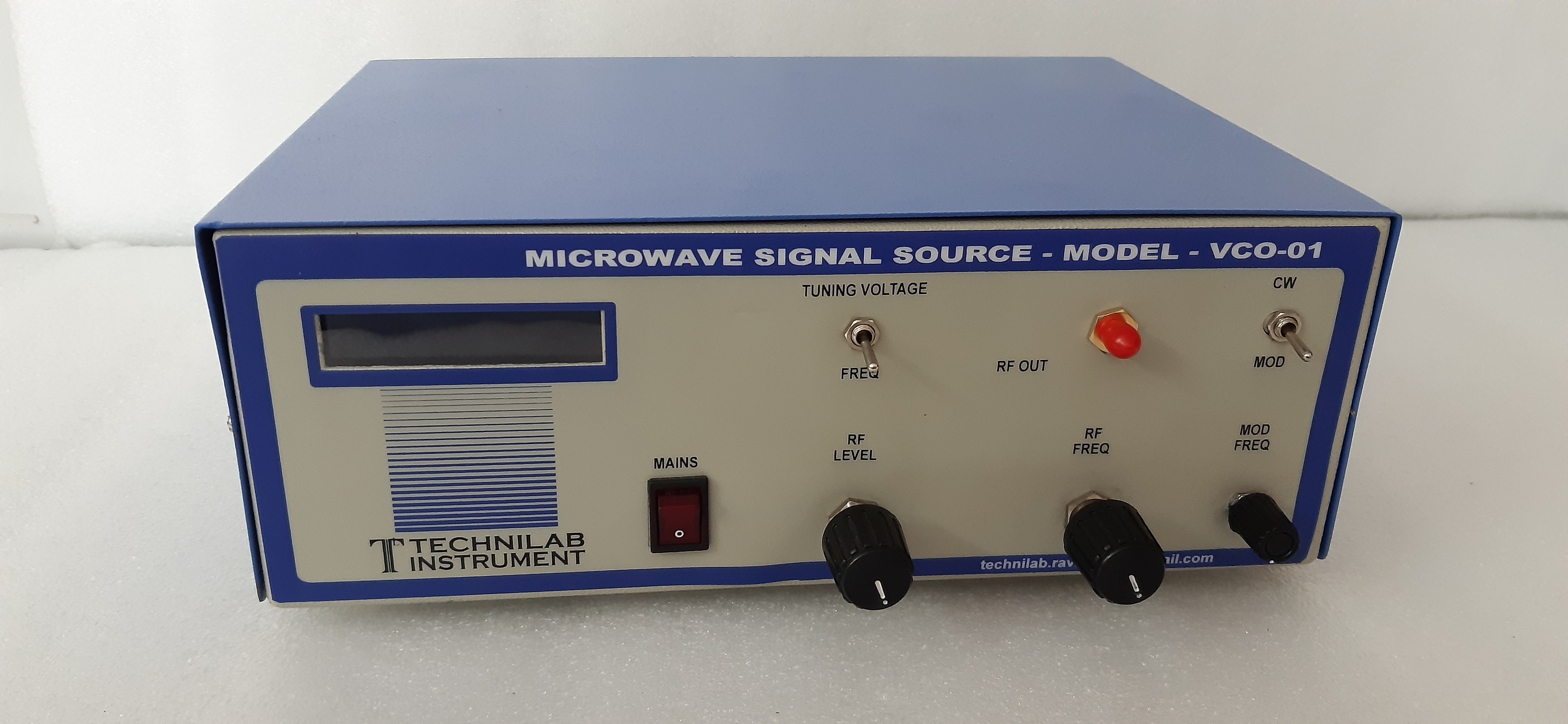

Microwave Signal Source – VCO Based |
QTY |
| 1 |
Microwave Signal Source – VCO Based |
1 |
| 2 |
R F Power Meter |
1 |
| 3 |
Micro strip Antenna |
1 |
| 4 |
Micro Strip Dipole Antenna |
1 |
| 5 |
Micro strip Patch Antenna – transformed feed |
1 |
| 6 |
Probe Feed Patch Antenna |
1 |
| 7 |
Transmitter and Receiver Antenna Stand Tripod – Imported |
1 |
| 9 |
RF Detector |
100 |
| 10 |
SMA – BNC Cable |
1 |
| 11 |
SMA – SMA RF Cable (RG 188) – 1 meter |
2 |
| 12 |
SMA – SMA RF Cable Short Length |
3 |
| 13 |
2x2 Array Antenna |
1 |
| 14 |
Wired Mono Pole Antenna |
1 |
|
Microprocessor Based Radiation Pattern Turn table with degree and power with software for pattern plotting (PC not included) |
1 |

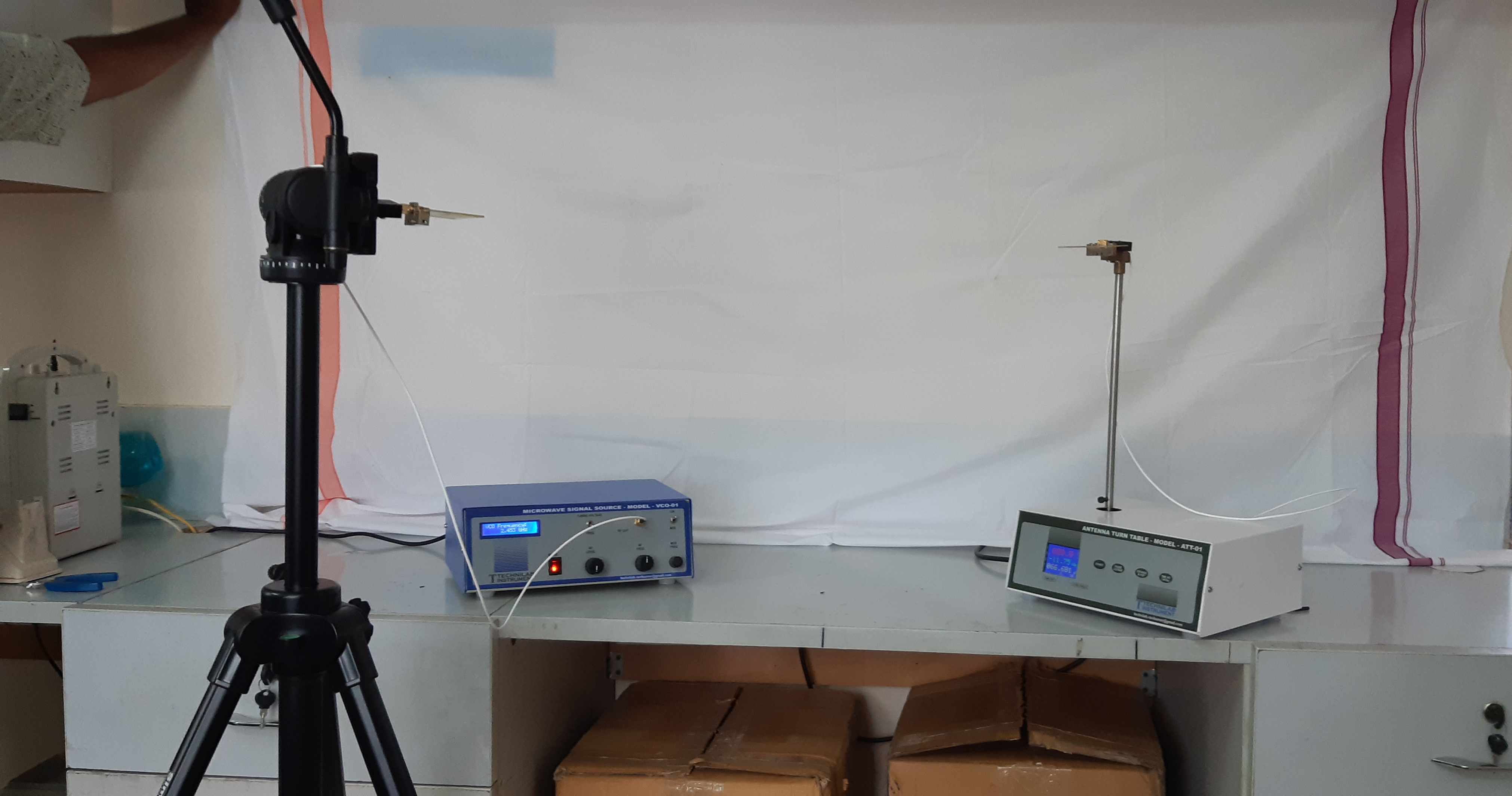

Micro strip Antenna Trainer Kit TLMS-02 Micro Strip Antenna Trainer Kit for Study of Radiation Pattern, Gain, Directivity etc
| Sl.No |
Microwave Signal Source – VCO Based |
QTY |
| 1 |
Microwave Signal Source – VCO Based |
1 |
| 2 |
R F Power Meter |
1 |
| 3 |
Micro strip Resonator |
1 |
| 4 |
Micro Strip Power Divider |
1 |
| 5 |
Micro strip Branch line coupler |
1 |
| 6 |
Micro strip Paraller line coupler |
1 |
| 7 |
RF Detector |
1 |
| 9 |
SMA Matched Termination |
100 |
| 10 |
SMA – BNC Cable |
1 |
| 11 |
SMA – SMA RF Cable (RG 188) – 1 meter |
2 |
| 12 |
SMA – SMA RF Cable Short Length |
3 |
| 13 |
6 dB Attenuator |
1 |
