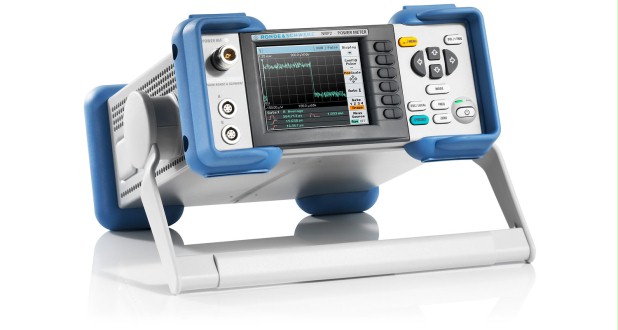

Key Facts

• Supports all R&S®NRPxxS/SN, R&S®NRPxxT/TN and R&S®NRPxxA/AN USB and LAN Power Sensors
• Supports all R&S®NRP-Zxx Power Sensors
• Supports all sensor-dependent measurement functions
• Expandable to up to four measurement channels
• Straightforward numerical and graphical display
• Brilliant TFT color display
• Optionally integrated 50 MHz/1 mW reference source
• Hardware interfaces for remote control and triggering
• Emulation of other legacy power meter
• User-programmable save/recall locations

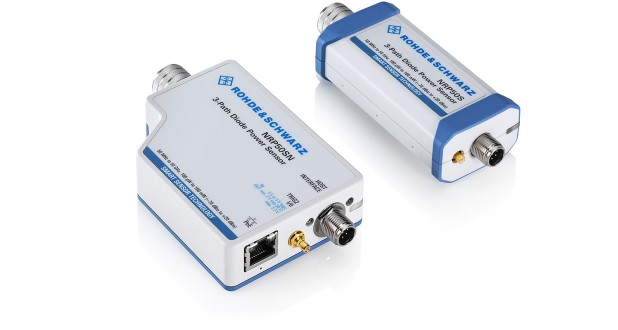

Key Facts

• Fast and accurate power measurements for CW and modulated signals
• Maximum dynamic range: –70 dBm to +45 dBm
• Control and monitoring via LAN and USB
• 10 000 triggered measurements/s
• More than 50 000 readings/s
• Sensors for high-power applications
• Web client for operation using a web browser
• Built-in trigger I/O port
• Flexible operation with R&S®NRP2 base unit, a laptop/PC and many Rohde & Schwarz instruments

Specifications

NRPxxS/SN sensors	Frequency range
R&S®NRP8S/SN, N (m)	10 MHz to 8 GHz
R&S®NRP18S/SN, N (m)	10 MHz to 18 GHz
R&S®NRP33S/SN, 3.5mm (m)	10 MHz to 33 GHz
R&S®NRP40S/SN, 2.92mm (m)	50 MHz to 40 GHz
R&S®NRP50S/SN, 2.4mm (m)	50 MHz to 50 GHz

Key Facts

• Fast and accurate power measurements for CW and modulated signals
• Maximum dynamic range: –60 dBm to +45 dBm
• Control and monitoring via USB
• 10 000 triggered measurements/s
• More than 50 000 readings/s
• Built-in trigger I/O port
• Flexible operation with R&S®NRP2 base unit, a laptop/PC and many Rohde & Schwarz instruments

Specifications

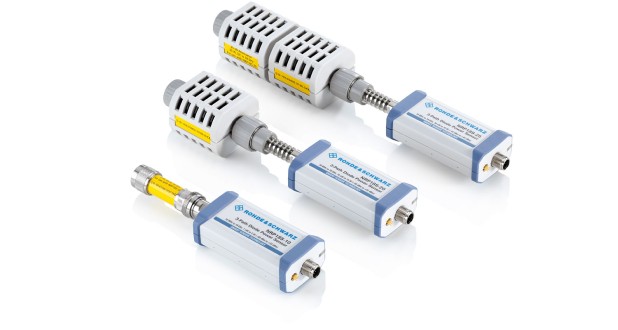

NRP18S-xx high-power three-path diode power sensor	Measurement range
R&S®NRP18S-10	1 nW to 2 W
R&S®NRP18S-20	10 nW to 15 W
R&S®NRP18S-25	30 nW to 30 W

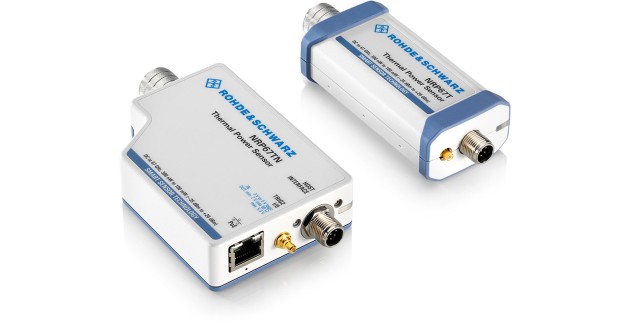

Key Facts

• Dynamic range: –35 dBm to +20 dBm
• Frequency range: DC to 110 GHz
• Control and monitoring via LAN and USB
• Outstanding performance for reference applications
• Excellent impedance matching
• Sophisticated connector concept
• Internal calibration test
• Web client for operation using a web browser
• Flexible operation with R&S®NRP2 base unit, a laptop/PC and many Rohde & Schwarz instruments

Specifications

NRPxxT/TN sensors	Frequency range
R&S®NRP18T/TN, N (m)	DC to 18 GHz
R&S®NRP33T/TN, 3.5mm (m)	DC to 33 GHz
R&S®NRP40T/TN, 2.92mm (m)	DC to 40 GHz
R&S®NRP50T/TN, 2.4mm (m)	DC to 50 GHz

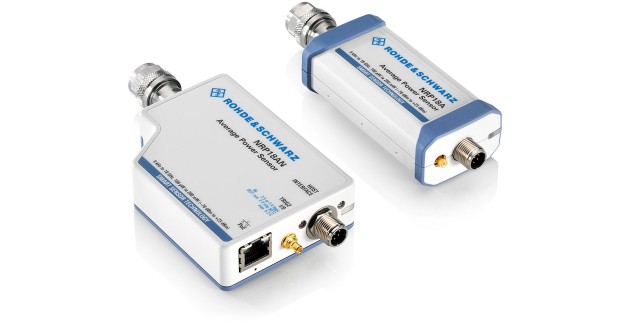

Key Facts

• Dynamic range: –70 dBm to +23 dBm
• Frequency range: 8 kHz to 18 GHz
• Control and monitoring via LAN and USB
• Measurement of continuous average power
• 93 dB dynamic range for CW and modulated signals
• Low sensitivity to harmonics
• Web client for operation using a web browser
• Flexible operation with R&S®NRP2 base unit, a laptop/PC and many Rohde & Schwarz instruments

Key Facts

• Support of all sensor dependent measurement modes
• Supports all NRPxxS/SN power sensors (free of charge)
• NRP-Zxx operational with a sensor based keycode option R&S®NRPZ-K1
• Multiple traces in one measurement window
• Automatic pulse analysis
• Flexible marker functionality
• Dongle free on multiple PCs

Specifications

Key Facts

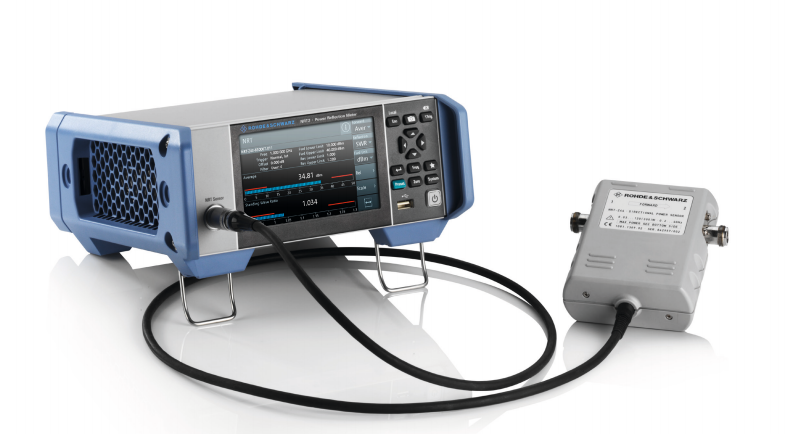

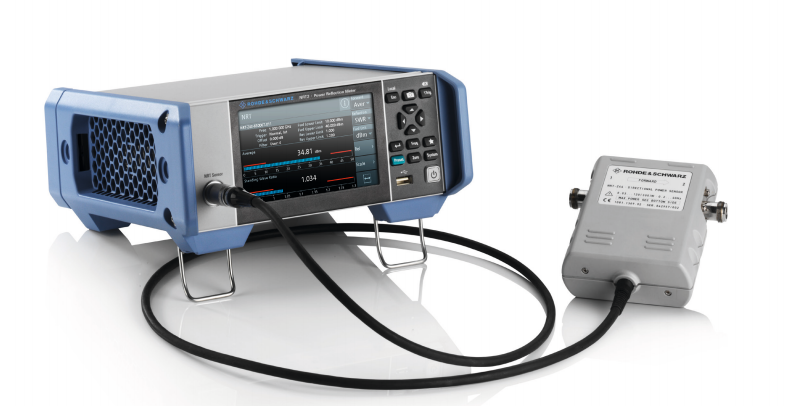

• Simultaneous display of forward and reverse power
• Measurement of average power, average burst power, peak power, crest factor, CCDF and mismatch
• 5″ color touchscreen
• Direct operation of the R&S®NRT-Zxx directional power sensors from a PC
• Frequency range from 25 MHz to 4 GHz (sensor-dependent)

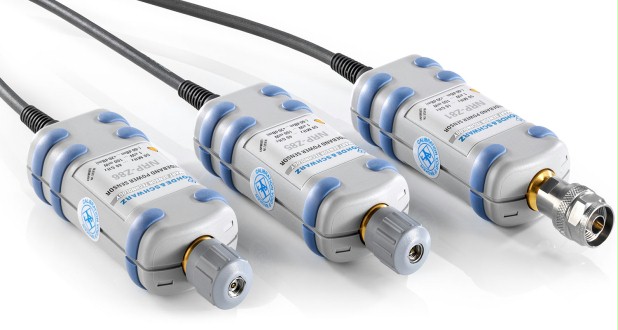

Key Facts

• Thermal power sensors: most accurate power measurements for reference applications and use in calibration labs
• Two-path diode power sensors: cost efficient power measurement solution for production
• Power sensor module: level calibration of signal sources in conjunction with the R&S®FSMR measurement receiver
• Versatile measurement functions
• Simply plug-in and measure
• Minimize measurement uncertainty
• Enhanced auto-averaging filter
• Easy system integration
• Multiple ways to operate R&S®NRP-Zxx sensors

Specifications

R&S®NRP-Z Sensors
Dynamic range	up to 90 dB (sensor dependent)
Level range	-60 dBm to +26 dBm (sensor dependent)
Frequency range	DC to 26.5 GHz (sensor dependent)

Key Facts

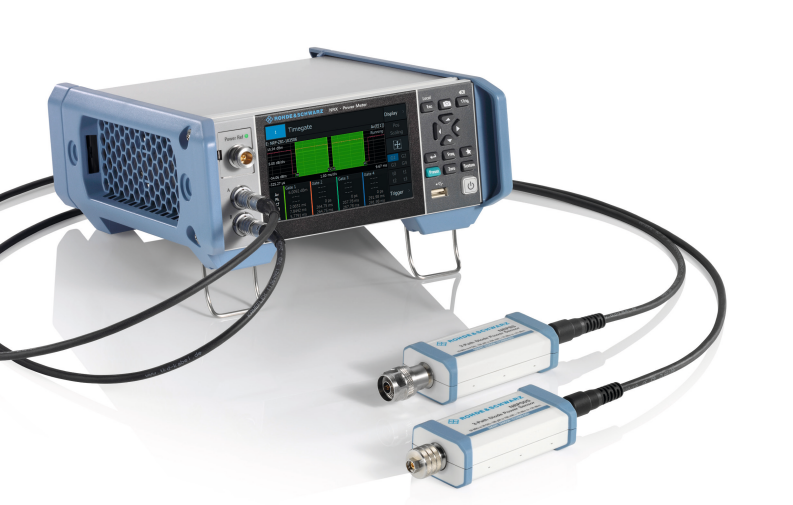

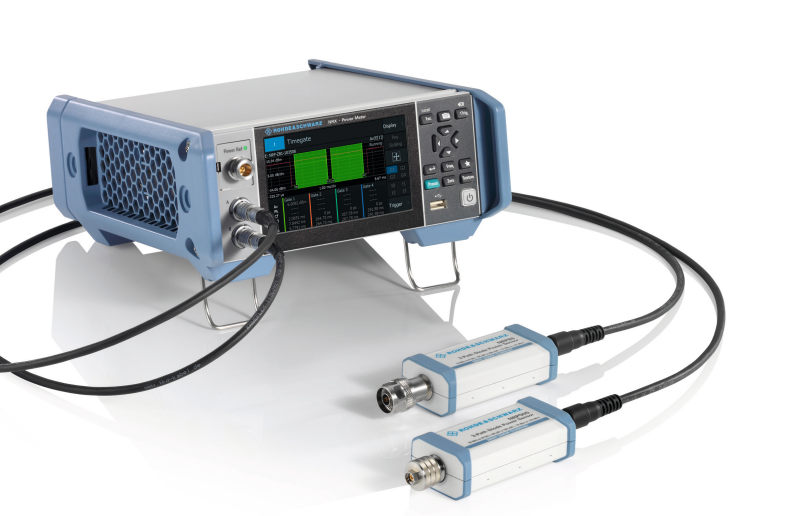

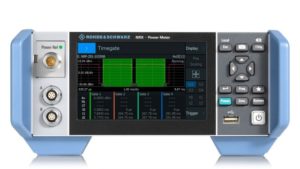

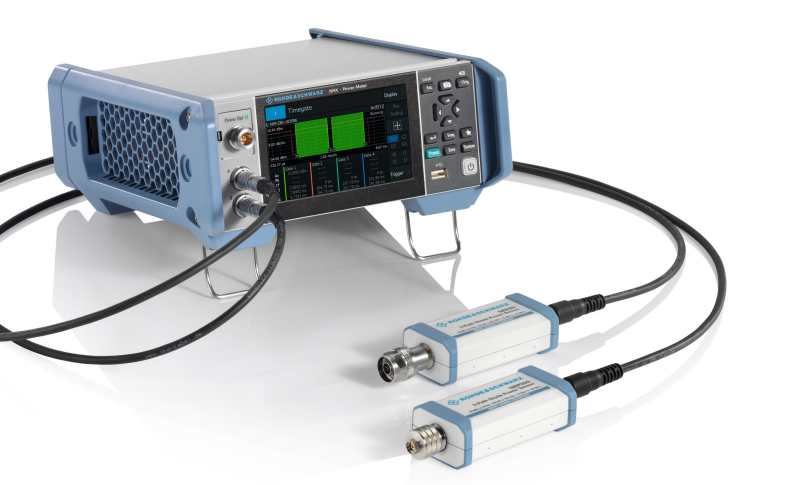

• Intuitive operation with touch screen based GUI
• Supports up to four R&S®NRP and R&S®NRQ6 power sensors
• Supports all sensor-dependent measurement functions
• Optional high-precision CW and pulse mode reference source module
• Optional power reflection measurements with NRT-Zxx sensors

Key Facts

• Simultaneous display of forward and reverse power
• Measurement of average power, average burst power, peak power, crest factor, CCDF and mismatch
• 5" color touchscreen
• Direct operation of the R&S®NRT-Zxx directional power sensors from a PC
• Frequency range from 25 MHz to 4 GHz (sensor-dependent)

Key Facts

• Simultaneous display of forward and reverse power
• Measurement of average power, average burst power, peak power, crest factor, CCDF and mismatch
• 5" color touchscreen
• Direct operation of the R&S®NRT-Zxx directional power sensors from a PC
• Frequency range from 25 MHz to 4 GHz (sensor-dependent)

Key Facts

• Cost-effective and compact: sensor operation on a laptop/PC via USB
• R&S®NRPxxSN/TN/AN LAN models: measurements over any distance via built-in web GUI and powered with PoE
• Comprehensive portfolio for power measurements from DC to 110 GHz, from –70 dBm to +45 dBm
• Up to 93 dB dynamic range with three-path diode power sensors
• Precise analysis of envelope power with wideband power sensors
• Top accuracy with thermal power sensors
• Up to four R&S®NRP power sensors can be simultaneously connected to the R&S®NRX base unit

Key Facts

• Cost-effective and compact: sensor operation on a laptop/PC via USB
• R&S®NRPxxSN/TN/AN LAN models: measurements over any distance via built-in web GUI and powered with PoE
• Comprehensive portfolio for power measurements from DC to 110 GHz, from –70 dBm to +45 dBm
• Up to 93 dB dynamic range with three-path diode power sensors
• Precise analysis of envelope power with wideband power sensors
• Top accuracy with thermal power sensors
• Up to four R&S®NRP power sensors can be simultaneously connected to the R&S®NRX base unit

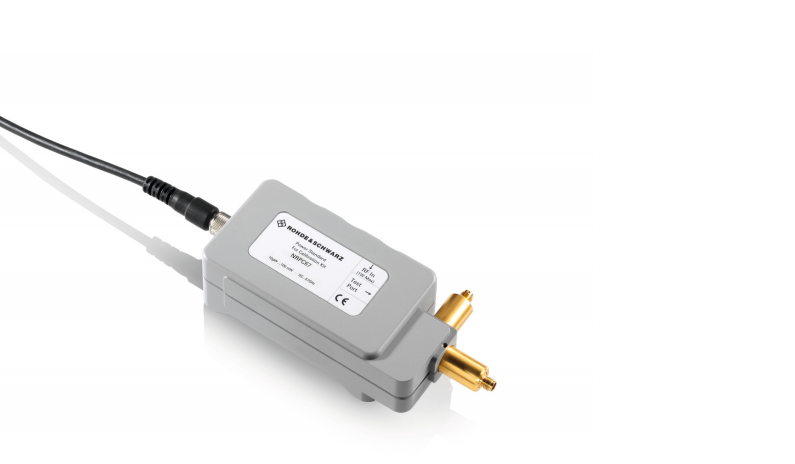

Key Facts

• Program-controlled calibration of the power sensors of the R&S®NRP and R&S®FSH families
• Short measurement times for high throughput
• Modular concept for cost-effective, flexible operation
• DAkkS-accredited, PTB-traceable

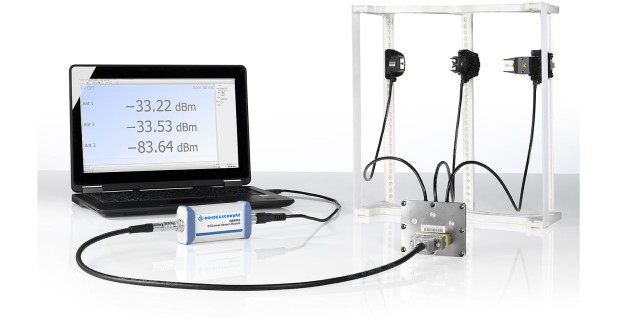

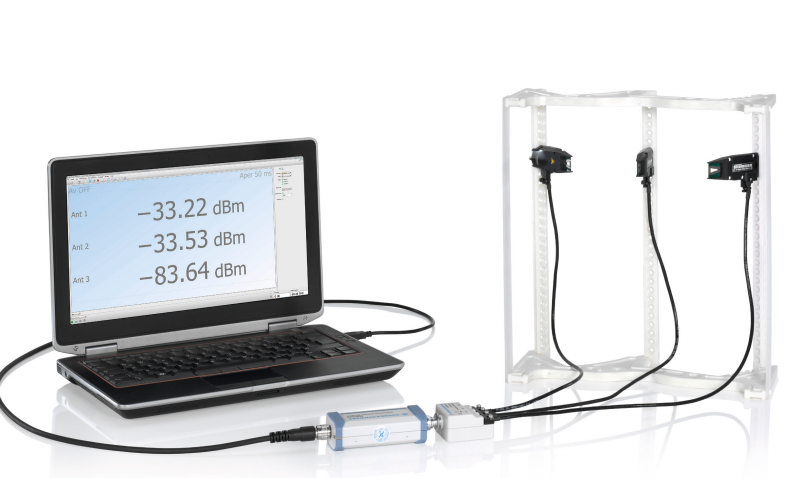

Key Facts

• OTA power measurement solution
• For 5G, WLAN IEEE802.11ad and IEEE802.11ay
• Frequency range from 18 GHz to 90 GHz
• Ideal for beamforming tests
• Fully calibrated antenna module with integrated diode detector
• Scalable to customer requirements
• Fits perfectly into Rohde&Schwarz shielded RF test box

Key Facts

• Cost-effective and compact: sensor operation on a laptop/PC via USB
• R&S®NRPxxSN/TN/AN LAN models: measurements over any distance via built-in web GUI and powered with PoE
• Comprehensive portfolio for power measurements from DC to 110 GHz, from –70 dBm to +45 dBm
• Up to 93 dB dynamic range with three-path diode power sensors
• Precise analysis of envelope power with wideband power sensors
• Top accuracy with thermal power sensors
• Up to four R&S®NRP power sensors can be simultaneously connected to the R&S®NRX base unit

Key Facts

• Cost-effective and compact: sensor operation on a laptop/PC via USB
• R&S®NRPxxSN/TN/AN LAN models: measurements over any distance via built-in web GUI and powered with PoE
• Comprehensive portfolio for power measurements from DC to 110 GHz, from –70 dBm to +45 dBm
• Up to 93 dB dynamic range with three-path diode power sensors
• Precise analysis of envelope power with wideband power sensors
• Top accuracy with thermal power sensors
• Up to four R&S®NRP power sensors can be simultaneously connected to the R&S®NRX base unit

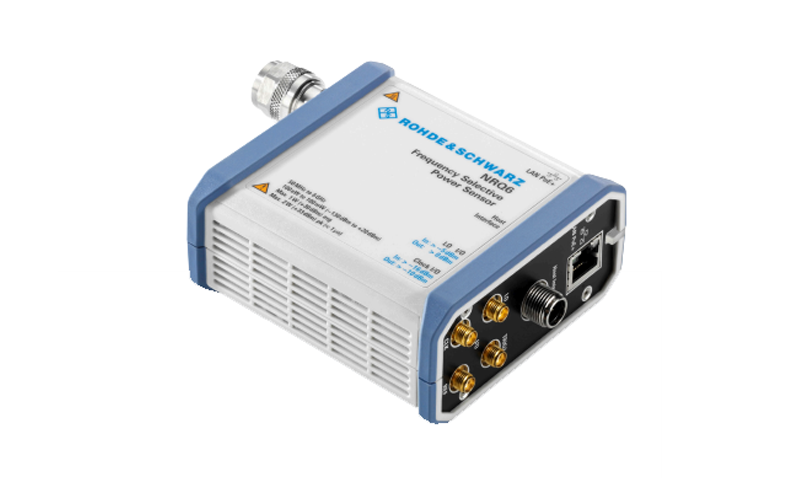

Key Facts

• Frequency selective power measurements
• Frequency range: 50 MHz to 6 GHz
• Power measurement range: –130 dBm to +20 dBm
• Automatic frequency and bandwidth detection
• 100 MHz measurement bandwidth
• Continuous average, trace and ACLR measurements
• I/Q data capturing for RF vector signal analysis
• Fast power servoing with R&S®SGT100A
• Phase coherent measurements for low-power modulated signals

Key Facts

• Simultaneous display of forward and reverse power
• Measurement of average power, average burst power, peak power, crest factor, CCDF and mismatch
• 5" color touchscreen
• Direct operation of the R&S®NRT-Zxx directional power sensors from a PC
• Frequency range from 25 MHz to 4 GHz (sensor-dependent)

Key Facts

• Simultaneous display of forward and reverse power
• Measurement of average power, average burst power, peak power, crest factor, CCDF and mismatch
• 5" color touchscreen
• Direct operation of the R&S®NRT-Zxx directional power sensors from a PC
• Frequency range from 25 MHz to 4 GHz (sensor-dependent)

Key Facts

• Cost-effective and compact: sensor operation on a laptop/PC via USB
• R&S®NRPxxSN/TN/AN LAN models: measurements over any distance via built-in web GUI and powered with PoE
• Comprehensive portfolio for power measurements from DC to 110 GHz, from –70 dBm to +45 dBm
• Up to 93 dB dynamic range with three-path diode power sensors
• Precise analysis of envelope power with wideband power sensors
• Top accuracy with thermal power sensors
• Up to four R&S®NRP power sensors can be simultaneously connected to the R&S®NRX base unit
