HMP4030/HMP4040 PROGRAMMABLE THREE/FOUR-CHANNEL POWER SUPPLY
Key Facts
- HMP4030: 3 × 0 V to 32 V/0 A to 10 A (384 W)
- HMP4040: 4 × 0 V to 32 V/0 A to 10 A (384 W)
- Low residual ripple due to linear postregulators
- Realtime voltage, current and power values
- High setting and readback resolution: 1 mV and 0.1/0.2/1.0 A (depending on current and model)
- FuseLink (electronic fuse) freely combinable for all channels
- FuseDelay tunable up to 250 ms
- EasyArb function directly programmable on device
- PC software (free of charge) for easy generation of user-defined waveforms
- Independently adjustable overvoltage protection (OVP) for each channel
- Advanced parallel and serial operation via V/I tracking
- Front connectors: 4 mm (0.16 in) safety sockets
- Rear connectors for all channels, including sense
- USB/RS-232 dual interface, remote control via SCPI-based commands

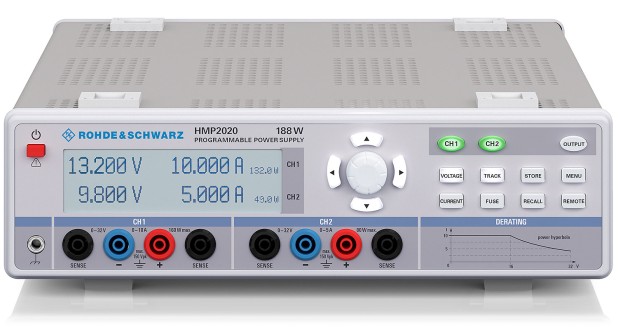

HMP2020/HMP2030 PROGRAMMABLE TWO/THREE-CHANNEL POWER SUPPLY
Key Facts
- HMP2020: 1 × 0 V to 32 V/0 A to 10 A; 1 × 0 V to 32 V/0 A to 5 A (188 W)
- HMP2030: 3 × 0 V to 32 V/0 A to 5 A (188 W)
- Low residual ripple due to linear postregulators
- Realtime voltage, current and power values
- High setting and readback resolution: 1 mV and 0.1/0.2/1.0 mA (depending on current and model)
- FuseLink (electronic fuse) freely combinable for all channels
- FuseDelay tunable up to 250 ms
- EasyArb function directly programmable on device
- PC software (free of charge) for easy generation of user-defined waveforms
- Independently adjustable overvoltage protection (OVP) for each channel
- Advanced parallel and serial operation via V/I tracking
- Front connectors: 4 mm (0.16 in) safety sockets
- Rear connectors for all channels, including sense
- USB/RS-232 dual interface, remote control via SCPI-based commands

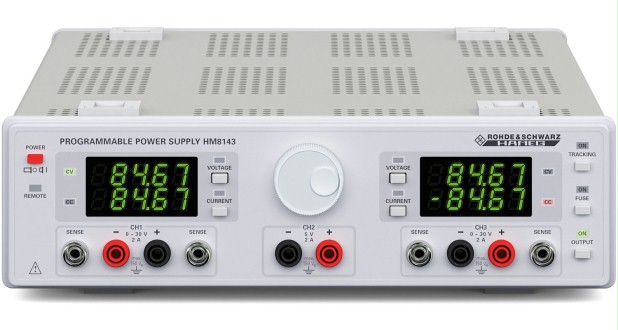

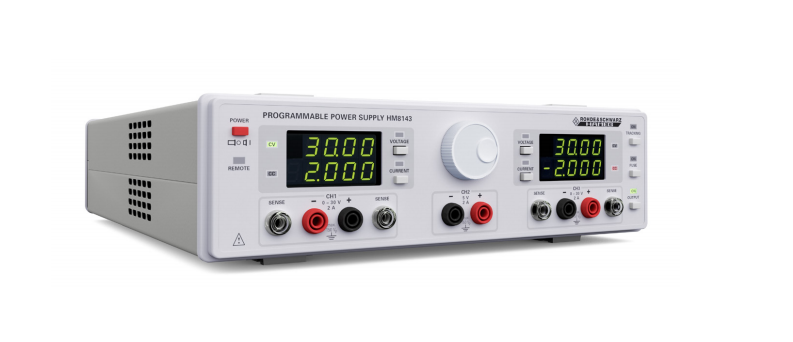

HM8143 THREE-CHANNEL ARBITRARY POWER SUPPLY
Key Facts
- 2 × 0 V to 30 V/1 × 5 V, 3 × 2 A (max. 130 W)
- Realtime voltage and current values
- Linear regulated, two-quadrant power supply (current source and sink)
- Setting and readback resolution: 10 mV, 1 mA
- Electronic fuse and tracking
- Advanced parallel (up to 6 A) and serial (up to 65 V) operation
- Front connectors: 4 mm (0.16 in) safety sockets
- Sense connectors for line loss compensation (30 V channels)
- External modulation of output voltages up to 50 kHz
- Arbitrary module: 4096 points, 12 bit
- RS-232/USB dual interface, optionally IEEE-488 (GPIB)
Download Brochure

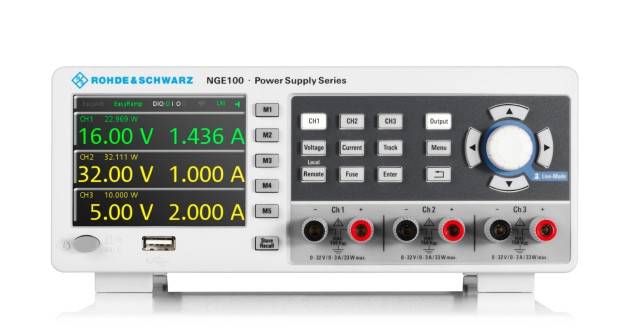

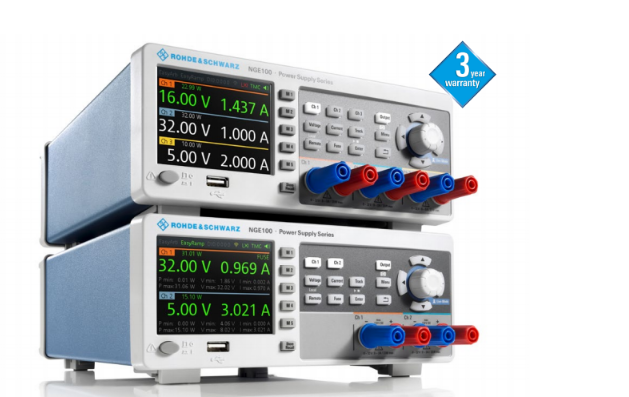

NGE100 POWER SUPPLY SERIES
Key Facts
- R&S®NGE102 with two or R&S®NGE103 with three channels
- Max. output power of 66 W with R&S®NGE102, 100 W with R&S®NGE103 (33.6 W per channel)
- Max. output voltage of 32 V per channel (up to 64 V/96 V in serial operation)
- Max. output current of 3 A per channel (up to 6 A/9 A in parallel operation)
- Electronic fuse (OCP), overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP)
- USB interface (VCP/TMC), optional LAN (LXI), optional wireless LAN
- Optional digital I/O (4bit)
Download Brochure
HM7042 TRIPLE POWER SUPPLY
Key Facts
- 2 x 0V to 32V/0A to 2A; 1 x 0V to 5.5V/0A to 5A
- High-performance value laboratory power supply
- Floating, overload and short circuit-proof outputs
- Separate voltage and current displays for each output; 4 digits at channel 1 + 3; 3 digits at channel 2
- Display resolution: 10mV/1mA at channel 1 + 3; 10 mV/10 mA at channel 2
- Protection of sensitive loads by current limit or electronic fuse
- Pushbutton to activate/deactivate all outputs
- Low residual ripple, high output power, excellent regulation
- Parallel (up to 9 A) and series (up to 69.5 V) operation
- Temperature-controlled fan
- HZ42 19 “ rackmount kit (2RU)
Download Brochure

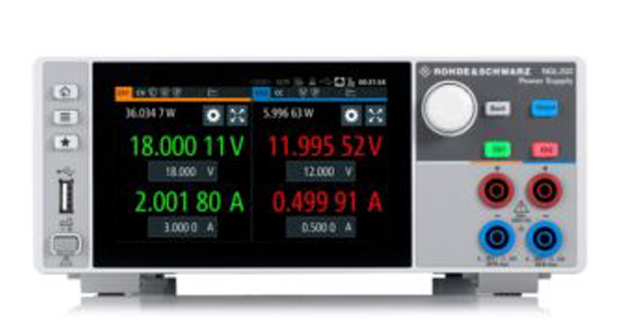

NGL200
- Max. output power: 120 W
- Voltage per channel: 0 V to 20 V
- Max. current per channel: 6 A
- Load recovery time: < 30 µs
- Ripple and noise: < 500 µVRMS / < 1 mARMS
Download Brochure
R&S®HM8143 Three-channel arbitrary power supply
Key Facts
- 2x 0V to 30V / 1x 5V, 3x 2A (130W)
- Linear regulated, two-quadrant power supply (current source and sink)
- Realtime voltage and current values
- Advanced parallel and serial operation
- Setting and readback resolution: 10mV, 1mA
- Electronic fuse and tracking mode
- Front connectors: 4mm safety sockets
- SENSE connectors for line loss compensation (30V channels)
- External modulation of output voltages up to 20kHz
- Arbitrary module: 4,096 points, 12bit
- RS-232/USB dual interface, IEEE-488 (GPIB) optionally
Download Brochure

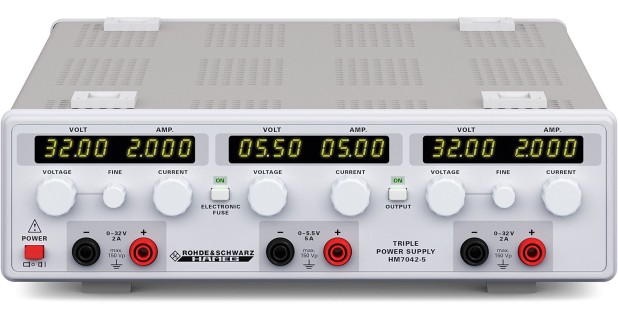

R&S®HM7042-5 Triple Power Supply
- High-performance, inexpensive laboratory power supply
- Floating, overload and short-circuit proof outputs
- Separate voltage and current displays for each output
- Protection of sensitive loads by current limit or electronic fuse
- Pushbutton to activate/deactivate all outputs
- Low residual ripple, high output power, excellent regulation
- Parallel operation for higher current and serial operation for higher voltage
- Temperature-controlled fan
Download Brochure

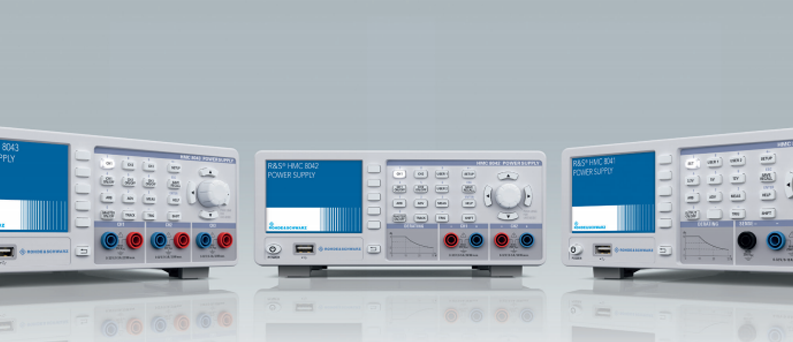

HMC804X Power Supply 100W and 1,2 or 3 Channels
Key Facts
- Brilliant QVGA color display (320 x 240 pixel)
- Realtime voltage, current and power values
- High setting and readback resolution: 1mV and 0.1mA/1.0mA (depending on current and model)
- Low residual ripple due to linear postregulation
- High energy efficiency, low heat dissipation and quiet fan
- Front panel: 4mm (0.16in) safety sockets (R&S®HMC8041 including SENSE)
- Rear panel: WAGO cage clamp for all channels including SENSE
- Convenient parallel and serial operation via
- V/I tracking
Download Brochure

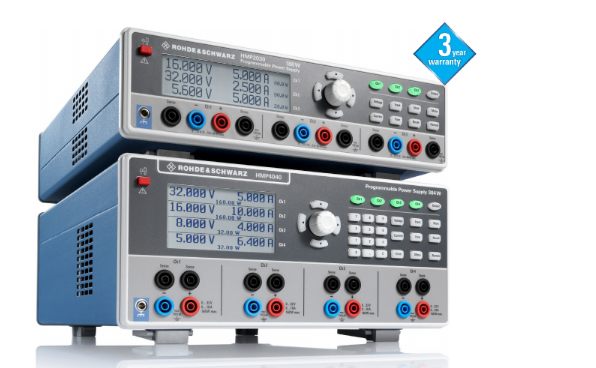

R&S®HMP4000 Power supply series
Key Facts
- R&S®HMP2020/HMP2030 with 2/3 channels and 188 W total output power
- R&S®HMP4030/HMP4040 with 3/4 channels and 384 W total output power
- Maximum output voltage of 32 V per channel; higher voltages possible in serial operation
- High output currents up to 5 A/10 A (depending on the model); higher currents possible in parallel operation
- Linear postregulation for low residual ripple
- Electronic fuse (OCP), adjustable maximum voltage (OVP), overtemperature protection (OTP)
- Dual USB/LAN interface as standard; RS-232/USB or GPIB (IEEE488) optional
- Rear panel connections, including sense lines, for all channels
Download Brochure
R&S®HMP2000 Power supply series
- R&S®HMP2020/HMP2030 with 2/3 channels and 188 W total output power
- R&S®HMP4030/HMP4040 with 3/4 channels and 384 W total output power
- Maximum output voltage of 32 V per channel; higher voltages possible in serial operation
- High output currents up to 5 A/10 A (depending on the model); higher currents possible in parallel operation
- Linear postregulation for low residual ripple
- Electronic fuse (OCP), adjustable maximum voltage (OVP), overtemperature protection (OTP)
- Dual USB/LAN interface as standard; RS-232/USB or GPIB (IEEE488) optional
- Rear panel connections, including sense lines, for all channels
Download Brochure
R&S®NGE100B Power Supply Series
- All channels galvanically isolated and earth-free
- All channels electrically equivalent with the same voltage, current and power
- Parallel and serial operation
- Short-circuit-proof outputs
- Protection functions to safeguard instrument and DUT
- Modern architecture; small, compact and quiet
- Tailored to be used in education, labs and system racks
- Temperature-controlled fan
Download Brochure

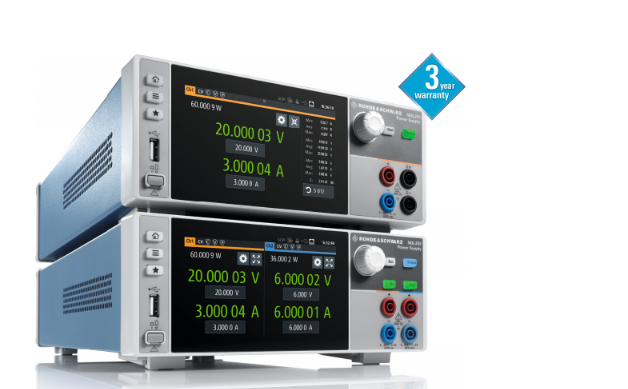

R&S®NGL200 Power supply series
Key Facts
- Fast load regulation
- Minimum residual ripple and low noise
- Readings with up to 61⁄2 digit resolution
- Galvanically isolated, floating channels
- Output stage isolated with relays
- Two quadrants: operates as source and sink
- Constant voltage, constant current and constant resistance modes
- Protection functions to safeguard instrument and DUT
- Safety limits to safeguard the DUT
Download Brochure

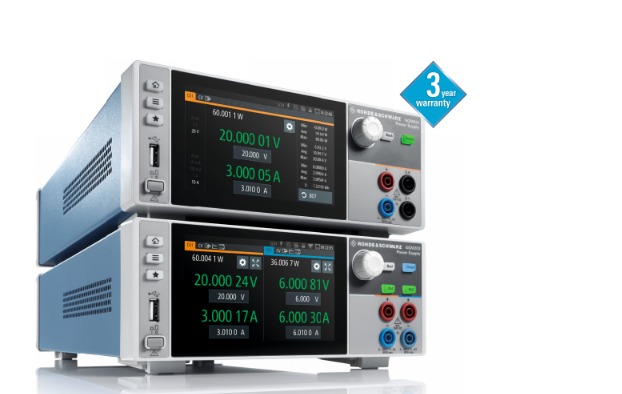

R&S®NGM200 Power supply series
- Fast load regulation
- Minimum residual ripple and low noise
- Readings with up to 61⁄2 digit resolution
- Digital voltmeter functionality
- Galvanically isolated, floating channels
- Output stage isolated with relays
- Two quadrants: operates as source and sink
- Constant voltage, constant current and constant resistance modes
- Variable output impedance
- High-speed acquisition (FastLog functionality)
- Protection functions to safeguard instrument and DUT
- Safety limits to safeguard the DUT
Download Brochure
